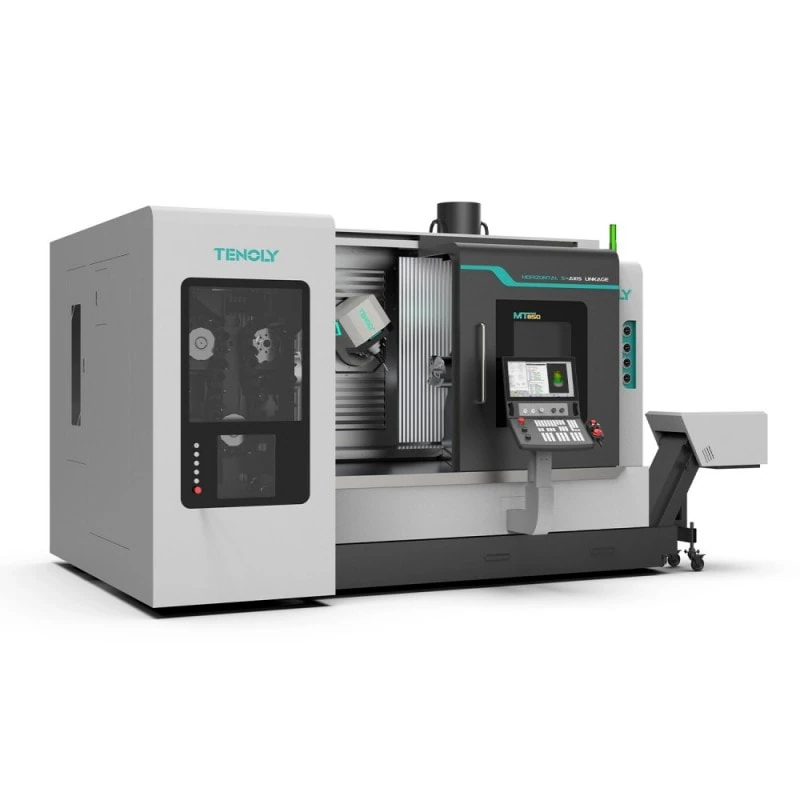

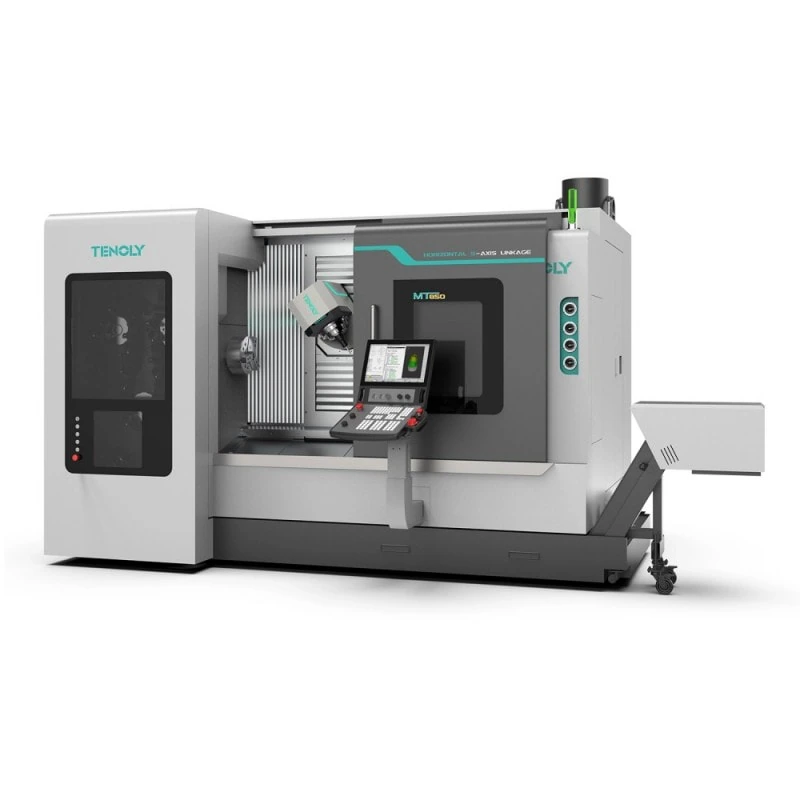

MT850B

● The MT series horizontal five-axis milling machine offers efficient production capabilities, equipped with a high-performance control system and high-speed contour control, achieving optimal surface accuracy in the shortest machining time. Highly dynamic five-axis drive machining enables the machining of complex workpieces, meeting the requirements of five-axis machining.

● Machining length 850mm, maximum machining diameter ψ500mm, maximum rotation diameter ψ520mm, and maximum spindle speed 2500rpm. The Y-axis features 210mm travel (±105° from centerline), a milling spindle speed of 12000rpm, a maximum torque of 54Nm, and a 240° oscillating axis range. Equipped with a fully closed-loop feedback system, it enables high-performance milling, fixed-axis bevel machining, and five-axis simultaneous machining.

● The machine utilizes a direct-drive electric spindle equipped with an absolute encoder, a C-axis indexing accuracy of 10 arc seconds (0.0027°), and a repeatability of 1.5 arc seconds (0.0004°). The spindle motor is equipped with a cooling system to minimize thermal displacement and maintain a constant spindle operating temperature. The spindle system undergoes rigorous dynamic balancing tests, ensuring excellent precision retention, high rigidity, and high efficiency. This allows the machine to perform not only finishing operations but also roughing and heavy cutting, making it particularly suitable for mass production of complex shapes and high-quality finishes.

● The highly rigid, integrated B-axis swing mechanism and 60-ton tool magazine provide a wider tool change range and enhance efficiency.

● This single machine tool handles specialized operations previously performed by specialized machines, such as gear machining and long-hole drilling. A variety of core distances are available to accommodate machining of large diameters and long workpieces.
