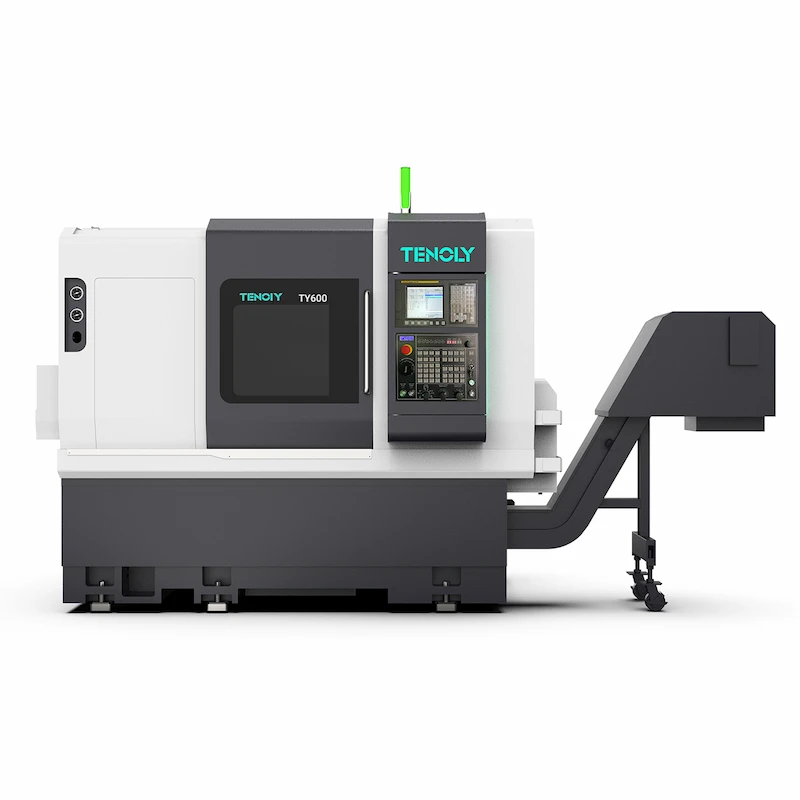

| ITEM | NAME | UNIT | TY600 | TY610 |
| Travel | Max. bed rotation dia. | mm | Φ700 | Φ700 |
| Max. machining dia. | mm | Φ670 | Φ670 | |
| Max. rotating dia. on the tool rest | mm | Φ350 | Φ350 | |
| Max. machining length | mm | 610 | 550 | |
| Distance between two centres | mm | 700 | 670 | |
| Spindle Cylinders Chucks | Spindle nose | ASA | A2-6/A2-6 | A2-8 |
| Hydraulic cylinder/chuck | inch | 10″-8″/8″-8″ | 10″ | |
| Spindle through-hole dia. | mm | Φ79/66 | Φ86 | |
| Max. bar through-hole dia. | mm | Φ66/52 | Φ76 | |
| Max. spindle speed | rpm | 4000/4500 | 2500 | |
| Spindle motor power | kw | 15-18.5/19 | 17 | |
| Spindle motor torque | Nm | 100-196/90-200 | 180-140 | |
| Sub-Spindle Cylinders Chucks | Sub-spindle nose | ASA | – | – |
| Sub-spindle hydraulic cylinder/collet | inch | – | – | |
| Sub-spindle through-hole dia. | mm | – | – | |
| Max. sub-spindle bar through-hole dia. | mm | – | – | |
| Sub-spindle max. speed | rpm | – | – | |
| Sub-spindle motor power | kw | – | – | |
| X/Z/Y/S Axis Feed Parameter | X-axis motor power | kw | 3 | 3 |
| Y-axis motor power | kw | – | – | |
| Z-axis motor power | kw | 3 | 3 | |
| S-axis motor power | kw | – | – | |
| X-axis travel | mm | 340 | 340 | |
| Y-axis travel | mm | – | – | |
| Z-axis travel | mm | 650 | 640 | |
| X/Z axis linear guide type | spes | 45 Roller | 45 Roller | |
| S-axis travel | mm | – | – | |
| X axis rapid traverse | mm/min | 24 | 24 | |
| Z axis rapid traverse | mm/min | 24 | 24 | |
| Y-axis rapid traverse | mm/min | – | – | |
| S-axis rapid traverse | mm/min | – | – | |
| Servo Drive Turret Parameters | Power turret type | / | Servo turret | Servo turret |
| Tool station | / | 12T | 12T | |
| M-axis motor power | kw | – | – | |
| M-axis motor torque | Nm | – | – | |
| Max. speed of power head | rpm | – | – | |
| OD tool holder specification | mm | 25*25 | 25*25 | |
| ID tool holder specification | mm | Φ40 | Φ40 | |
| Adjacent tool change time | sec | 0.2 | 0.2 | |
| X-axis Positioning Accuracy | 0.008 | 0.008 | ||
| Z-axis Positioning Accuracy | 0.01 | 0.01 | ||
| X-axis Repeatability | / | 0.005 | 0.005 | |
| Z-axis Repeatability | / | 0.005 | 0.005 | |
| Tailstock Parameters | Tailstock | / | Hydraulic Programmable Tailstock | Hydraulic Programmable Tailstock |
| Max. tailstock travel | mm | 650 | 650 | |
| Sleeve dia. | mm | Φ100 | Φ100 | |
| Sleeve Stroke | mm | 100 | 100 | |
| Sleeve Taper | / | MT#5 | MT#5 | |
| External Dimensions | Overall dimensions | m | 3100*2150*2160 | 3100*2150*2160 |
| Machine weight approx. | kg | 5200 | 5200 | |
| Other | Cutting fluid tank volume | L | 300 | 300 |
| Cooling water pump power | kw | 0.75 | 0.75 | |
| Hydraulic unit box volume | L | 40 | 40 | |
| Hydraulic oil pump motor power | kw | 1.5 | 1.5 | |
| Lubricating oil tank volume | L | 2 | 2 | |
| Automatic lubrication pump motor power | w | 50 | 50 |
●The maximum processing diameter is Φ490 and the maximum processing length is 550 (mm), which can meet the processing needs of workpieces within a certain size range. The chuck is 8 inches. The spindle has a maximum speed of 4300 rpm, a direct-drive spindle power of 19 kw, a nose runout accuracy of within 0.002 mm, an A2-6 spindle nose, and a BMT55-12T powered turret, enabling a wide range of machining processes and improving machining flexibility and efficiency.
●The high-speed, high-precision rear-mounted electric spindle reduces vibration and thermal displacement at high speeds, ensuring excellent machining accuracy and surface finish, while also ensuring excellent spindle rigidity and cooling. The spindle system undergoes rigorous dynamic balancing tests, boasting excellent precision retention, high rigidity, and high efficiency. This allows the machine to perform not only finishing but also roughing and heavy turning, making it particularly suitable for mass production of complex shapes and high-quality finishes.
●The high-rigidity, integrated servo-powered turret features a 100mm Y-axis travel (±50° from centerline), enabling eccentric milling, drilling, and tapping. The standard high-torque powered turret and servo-driven C-axis enable complex part machining.
● The CNC machine features an optimized 30-degree stepped flat rail structure, offering high precision, exceptional rigidity, and excellent turning stability. The machine bed is constructed from a single piece of high-strength HT300 cast iron, utilizing finite element analysis to ensure superior overall mechanical rigidity and stability. This ensures long-term reliable precision, improving machining stability and tool life.
● Utilizing a FANUC CNC system, the machine offers convenient and reliable operation, safe operation, stable machining accuracy, and high efficiency.
● It can meet the machining needs of general machinery industries, including automotive, agricultural machinery, motors, hydraulics, and bearings. It is suitable for efficient cutting of cast iron, steel, and non-ferrous metals.

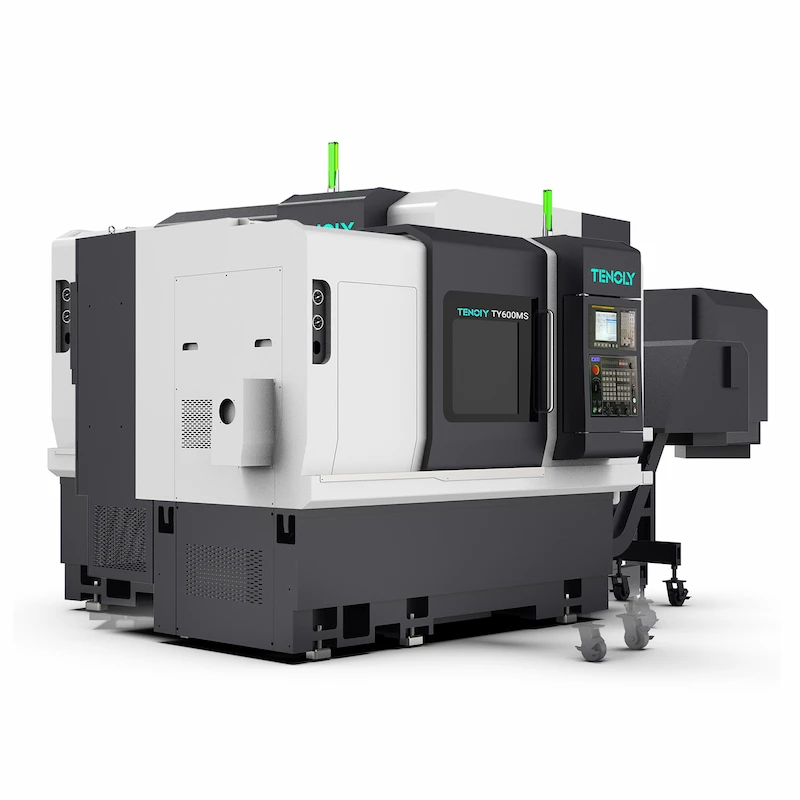

| ITEM | NAME | UNIT | TY600M | TY600MS |
| Travel | Max. bed rotation dia. | mm | Φ700 | Φ700 |
| Max. machining dia. | mm | Φ540 | Φ540 | |
| Max. rotating dia. on the tool rest | mm | Φ350 | Φ350 | |
| Max. machining length | mm | 600 | 570 | |
| Distance between two centres | mm | 700 | 570 | |
| Spindle Cylinders Chucks | Spindle nose | ASA | A2-6 | A2-6 |
| Hydraulic cylinder/chuck | inch | 8″ | 8″ | |
| Spindle through-hole dia. | mm | φ66 | Φ66 | |
| Max. bar through-hole dia. | mm | Φ52 | Φ52 | |
| Max. spindle speed | rpm | 4300 | 4300 | |
| Spindle motor power | kw | 19 | 19 | |
| Spindle motor torque | Nm | 90-200 | 90-200 | |
| Sub-Spindle Cylinders Chucks | Sub-spindle nose | ASA | – | A2-6 |
| Sub-spindle hydraulic cylinder/collet | inch | – | 8″ | |
| Sub-spindle through-hole dia. | mm | – | Φ66 | |
| Max. sub-spindle bar through-hole dia. | mm | – | Φ52 | |
| Sub-spindle max. speed | rpm | – | 4300 | |
| Sub-spindle motor power | kw | – | 19 | |
| X/Z/Y/S Axis Feed Parameter | X-axis motor power | kw | 3 | 3 |
| Y-axis motor power | kw | – | – | |
| Z-axis motor power | kw | 3 | 3 | |
| S-axis motor power | kw | – | 3 | |
| X-axis travel | mm | 315 | 320 | |
| Y-axis travel | mm | – | – | |
| Z-axis travel | mm | 700 | 620 | |
| X/Z axis linear guide type | spes | 45 Roller | 45 Roller | |
| S-axis travel | mm | – | 570 | |
| X axis rapid traverse | mm/min | 24 | 24 | |
| Z axis rapid traverse | mm/min | 24 | 24 | |
| Y-axis rapid traverse | mm/min | – | – | |
| S-axis rapid traverse | mm/min | – | 24 | |
| Servo Drive Turret Parameters | Power turret type | / | Servo turret | Servo turret |
| Tool station | / | BMT55-12T | BMT55-12T | |
| M-axis motor power | kw | 5.5 | 5.5 | |
| M-axis motor torque | Nm | 35 | 35 | |
| Max. speed of power head | rpm | 6000 | 6000 | |
| OD tool holder specification | mm | 25*25 | 25*25 | |
| ID tool holder specification | mm | Φ40 | Φ40 | |
| Adjacent tool change time | sec | 0.2 | 0.2 | |
| X-axis Positioning Accuracy | 0.008 | 0.008 | ||
| Z-axis Positioning Accuracy | 0.01 | 0.01 | ||
| X-axis Repeatability | / | 0.005 | 0.005 | |
| Z-axis Repeatability | / | 0.005 | 0.005 | |
| Tailstock Parameters | Tailstock | / | Hydraulic Programmable Tailstock | – |
| Max. tailstock travel | mm | 650 | – | |
| Sleeve dia. | mm | Φ100 | – | |
| Sleeve Stroke | mm | 100 | – | |
| Sleeve Taper | / | MT#5 | – | |
| External Dimensions | Overall dimensions | m | 3100*2150*2160 | 3100*2150*2160 |
| Machine weight approx. | kg | 5300 | 5500 | |
| Other | Cutting fluid tank volume | L | 300 | 250 |
| Cooling water pump power | kw | 0.75 | 0.75 | |
| Hydraulic unit box volume | L | 40 | 40 | |
| Hydraulic oil pump motor power | kw | 1.5 | 1.5 | |
| Lubricating oil tank volume | L | 2 | 2 | |
| Automatic lubrication pump motor power | w | 50 | 50 |
●The maximum processing diameter is Φ490 and the maximum processing length is 550 (mm), which can meet the processing needs of workpieces within a certain size range. The chuck is 8 inches. The spindle has a maximum speed of 4300 rpm, a direct-drive spindle power of 19 kw, a nose runout accuracy of within 0.002 mm, an A2-6 spindle nose, and a BMT55-12T powered turret, enabling a wide range of machining processes and improving machining flexibility and efficiency.
●The high-speed, high-precision rear-mounted electric spindle reduces vibration and thermal displacement at high speeds, ensuring excellent machining accuracy and surface finish, while also ensuring excellent spindle rigidity and cooling. The spindle system undergoes rigorous dynamic balancing tests, boasting excellent precision retention, high rigidity, and high efficiency. This allows the machine to perform not only finishing but also roughing and heavy turning, making it particularly suitable for mass production of complex shapes and high-quality finishes.
●The high-rigidity, integrated servo-powered turret features a 100mm Y-axis travel (±50° from centerline), enabling eccentric milling, drilling, and tapping. The standard high-torque powered turret and servo-driven C-axis enable complex part machining.
● The CNC machine features an optimized 30-degree stepped flat rail structure, offering high precision, exceptional rigidity, and excellent turning stability. The machine bed is constructed from a single piece of high-strength HT300 cast iron, utilizing finite element analysis to ensure superior overall mechanical rigidity and stability. This ensures long-term reliable precision, improving machining stability and tool life.
● Utilizing a FANUC CNC system, the machine offers convenient and reliable operation, safe operation, stable machining accuracy, and high efficiency.
● It can meet the machining needs of general machinery industries, including automotive, agricultural machinery, motors, hydraulics, and bearings. It is suitable for efficient cutting of cast iron, steel, and non-ferrous metals.

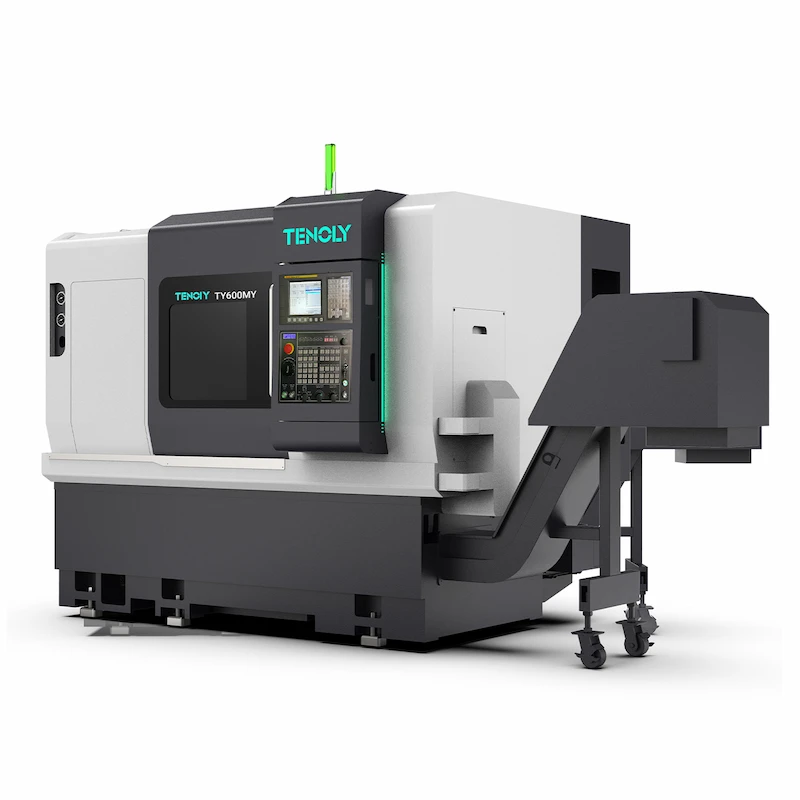

| ITEM | NAME | UNIT | TY600MY | TY600MSY | TY600MY-16T | TY600MSY-16T |
| Travel | Max. bed rotation dia. | mm | Φ800 | Φ800 | Φ800 | Φ800 |
| Max. machining dia. | mm | Φ490 | Φ400 | Φ320 | Φ320 | |
| Max. rotating dia. on the tool rest | mm | Φ450 | Φ450 | Φ450 | Φ450 | |
| Max. machining length | mm | 600 | 570 | 600 | 570 | |
| Distance between two centres | mm | 700 | 570 | 700 | 570 | |
| Spindle Cylinders Chucks | Spindle nose | ASA | A2-6 | A2-6 | A2-6 | A2-6 |
| Hydraulic cylinder/chuck | inch | 8″ | 8″ | 8″ | 8″ | |
| Spindle through-hole dia. | mm | Φ66 | Φ66 | Φ79/66 | Φ79/66 | |
| Max. bar through-hole dia. | mm | Φ52 | Φ52 | Φ66/52 | Φ66/52 | |
| Max. spindle speed | rpm | 4300 | 4300 | 4300 | 4300 | |
| Spindle motor power | kw | 19 | 19 | 19 | 19 | |
| Spindle motor torque | Nm | 90-200 | 90-200 | 90-200 | 90-200 | |
| Sub-Spindle Cylinders Chucks | Sub-spindle nose | ASA | – | A2-6 | – | A2-6 |
| Sub-spindle hydraulic cylinder/collet | inch | – | 8″ | – | 8″ | |
| Sub-spindle through-hole dia. | mm | – | Φ66 | – | Φ66 | |
| Max. sub-spindle bar through-hole dia. | mm | – | Φ52 | – | Φ52 | |
| Sub-spindle max. speed | rpm | – | 4300 | – | 4300 | |
| Sub-spindle motor power | kw | – | 19 | – | 19 | |
| X/Z/Y/S Axis Feed Parameter | X-axis motor power | kw | 3 | 3 | 3 | 3 |
| Y-axis motor power | kw | 1.8 | 1.8 | 1.8 | 1.8 | |
| Z-axis motor power | kw | 3 | 3 | 3 | 3 | |
| S-axis motor power | kw | – | 3 | – | 3 | |
| X-axis travel | mm | 275 | 235 | 210 | 210 | |
| Y-axis travel | mm | 100(±50) | 100(±50) | 100(±50) | 100(±50) | |
| Z-axis travel | mm | 740 | 620 | 620 | 620 | |
| X/Z axis linear guide type | spes | 45 Roller | 45 Roller | 45 Roller | 45 Roller | |
| S-axis travel | mm | – | 570 | – | 570 | |
| X axis rapid traverse | mm/min | 24 | 24 | 24 | 24 | |
| Z axis rapid traverse | mm/min | 24 | 24 | 24 | 24 | |
| Y-axis rapid traverse | mm/min | 8 | 8 | 8 | 8 | |
| S-axis rapid traverse | mm/min | – | 24 | – | 24 | |
| Servo Drive Turret Parameters | Power turret type | / | Servo turret | Servo turret | Servo turret | Servo turret |
| Tool station | / | BMT55MY-12T | BMT65MY-12T | BMT55MY-16T | BMT55MY-16T | |
| M-axis motor power | kw | 5.5 | 7.5 | 5.5 | 5.5 | |
| M-axis motor torque | Nm | 35 | 47.8 | 35 | 35 | |
| Max. speed of power head | rpm | 6000 | 6000 | 6000 | 6000 | |
| OD tool holder specification | mm | 25*25 | 25*25 | 25*25 | 25*25 | |
| ID tool holder specification | mm | Φ40 | Φ40 | Φ40 | Φ40 | |
| Adjacent tool change time | sec | 0.2 | 0.2 | 0.2 | 0.2 | |
| X-axis Positioning Accuracy | 0.008 | 0.008 | 0.008 | 0.008 | ||
| Z-axis Positioning Accuracy | 0.01 | 0.01 | 0.01 | 0.01 | ||
| X-axis Repeatability | / | 0.005 | 0.005 | 0.005 | 0.005 | |
| Z-axis Repeatability | / | 0.005 | 0.005 | 0.005 | 0.005 | |
| Tailstock Parameters | Tailstock | / | Hydraulic Programmable Tailstock | – | Hydraulic Programmable Tailstock | – |
| Max. tailstock travel | mm | 580 | – | 580 | – | |
| Sleeve dia. | mm | Φ100 | – | Φ100 | – | |
| Sleeve Stroke | mm | 100 | – | 100 | – | |
| Sleeve Taper | / | MT#5 | – | MT#5 | – | |
| External Dimensions | Overall dimensions | m | 3100*2150*2160 | 3100*2150*2160 | 3100*2150*2160 | 3100*2150*2160 |
| Machine weight approx. | kg | 5300 | 5600 | 5300 | 5600 | |
| Other | Cutting fluid tank volume | L | 300 | 250 | 250 | 250 |
| Cooling water pump power | kw | 0.75 | 0.75 | 0.75 | 0.75 | |
| Hydraulic unit box volume | L | 40 | 40 | 40 | 40 | |
| Hydraulic oil pump motor power | kw | 1.5 | 1.5 | 1.5 | 1.5 | |
| Lubricating oil tank volume | L | 2 | 2 | 2 | 2 | |
| Automatic lubrication pump motor power | w | 50 | 50 | 50 | 50 |
●The maximum processing diameter is Φ490 and the maximum processing length is 550 (mm), which can meet the processing needs of workpieces within a certain size range. The chuck is 8 inches. The spindle has a maximum speed of 4300 rpm, a direct-drive spindle power of 19 kw, a nose runout accuracy of within 0.002 mm, an A2-6 spindle nose, and a BMT55-12T powered turret, enabling a wide range of machining processes and improving machining flexibility and efficiency.
●The high-speed, high-precision rear-mounted electric spindle reduces vibration and thermal displacement at high speeds, ensuring excellent machining accuracy and surface finish, while also ensuring excellent spindle rigidity and cooling. The spindle system undergoes rigorous dynamic balancing tests, boasting excellent precision retention, high rigidity, and high efficiency. This allows the machine to perform not only finishing but also roughing and heavy turning, making it particularly suitable for mass production of complex shapes and high-quality finishes.
●The high-rigidity, integrated servo-powered turret features a 100mm Y-axis travel (±50° from centerline), enabling eccentric milling, drilling, and tapping. The standard high-torque powered turret and servo-driven C-axis enable complex part machining.
● The CNC machine features an optimized 30-degree stepped flat rail structure, offering high precision, exceptional rigidity, and excellent turning stability. The machine bed is constructed from a single piece of high-strength HT300 cast iron, utilizing finite element analysis to ensure superior overall mechanical rigidity and stability. This ensures long-term reliable precision, improving machining stability and tool life.
● Utilizing a FANUC CNC system, the machine offers convenient and reliable operation, safe operation, stable machining accuracy, and high efficiency.
● It can meet the machining needs of general machinery industries, including automotive, agricultural machinery, motors, hydraulics, and bearings. It is suitable for efficient cutting of cast iron, steel, and non-ferrous metals.
