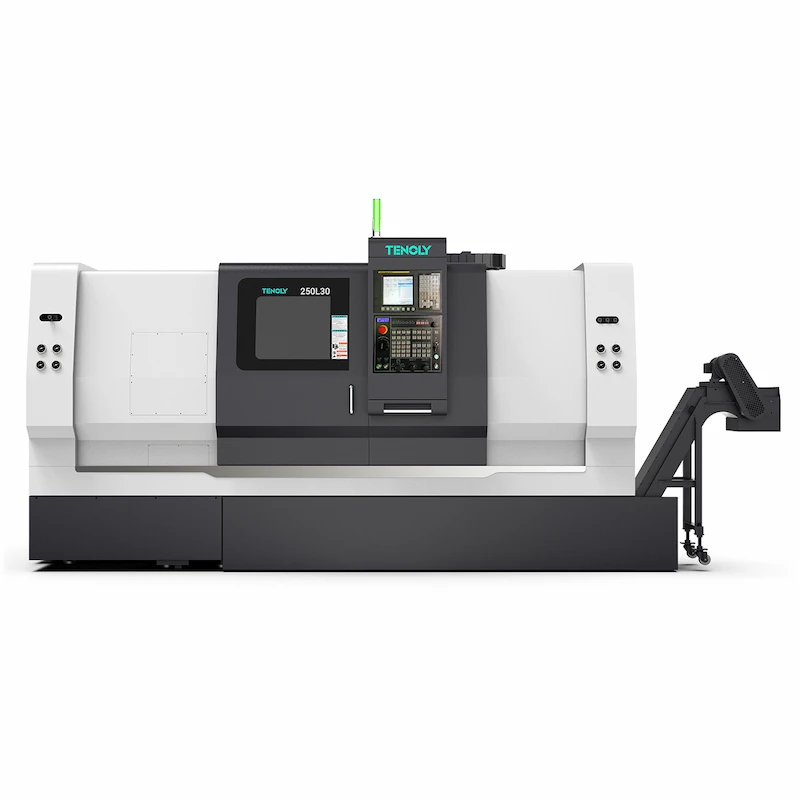

| ITEM | NAME | UNIT | 250L30 |
| Travel | Max. bed rotating diameter | mm | Φ610/820 |
| Max. machining diameter | mm | Φ580/570 | |
| Max. rotating diameter on the turret | mm | Φ350/570 | |
| Max. machining length | mm | 3200 | |
| Distance between two centres | mm | 3230 | |
| Spindle Cylinders Chucks | Spindle nose | ASA | A2-11 |
| Hydraulic cylinder/chuck | inch | 12″ | |
| Spindle through-hole diameter | mm | Φ102 | |
| Max. bar through-hole diameter | mm | Φ90 | |
| Max. spindle speed | rpm | 2500 | |
| Spindle motor power | kw | 15/18.5 | |
| Spindle motor torque | Nm | 440-544 | |
| X/Z/Y/S Axis Feed Parameter | X-axis motor power | kw | 3 |
| Y-axis motor power | kw | – | |
| Z-axis motor power | kw | 3 | |
| X-axis travel | mm | 305 | |
| Y-axis travel | mm | – | |
| Z-axis travel | mm | 3300 | |
| X/Z axis rail specification | spec | Hard Rail | |
| Y-axis specification rail form | spec | – | |
| X-axis rapid traverse | mm/min | 18 | |
| Z-axis rapid traverse | mm/min | 18 | |
| Y-axis rapid traverse | mm/min | – | |
| Servo Drive Turret Parameters | Power turret type | / | Servo turret |
| Tool station | / | 12T | |
| M-axis motor power | kw | – | |
| M-axis motor torque | Nm | – | |
| Max. speed of power head | rpm | – | |
| OD tool holder size | mm | 32*32 | |
| ID tool holder size | mm | Φ50 | |
| Adjacent tool change time | sec | 0.15 | |
| Positioning accuracy | / | ±0.005 | |
| Repeat positioning accuracy | / | ±0.003 | |
| Tailstock Parameters | Tailstock | / | Hydraulic Programmable Tailstock |
| Max. tailstock travel | mm | 2980/3000 | |
| Sleeve diameter | mm | Φ100 | |
| Sleeve Stroke | mm | 80 | |
| Sleeve Taper | / | MT#5 | |
| External Dimensions | Overall dimensions | m | 6700*2300*2355 |
| Machine weight approx. | kg | 12300 | |
| Other | Cutting fluid tank volume | L | 470 |
| Cooling water pump power | kw | 0.75 | |
| Hydraulic unit box volume | L | 40 | |
| Motor power of hydraulic oil pump | kw | 1.5 | |
| Lubricating oil tank volume | L | 2 | |
| Automatic lubrication pump motor power | W | 50 |
The TENOLY 250L30 high-rigidity, hard-track horizontal turning-milling machine is designed to meet the demands of large, heavy-load precision machining. It precisely supports long shafts and large parts with a maximum diameter of 600mm and a length of up to 3 meters. It is widely used in high-end manufacturing industries such as automotive, petroleum, wind power, and shipbuilding.
The CNC turning machine features a 30-degree inclined box-type bed with a high-strength cast iron base, ensuring extreme stability and excellent thermal deformation control. Equipped with a 15/18.5 kw high-torque spindle, it precisely reduces operating vibration, improving cutting efficiency and surface quality.
The advanced 12-station servo turret enables high-speed tool changes in just 0.2 seconds, supporting simultaneous turning, milling, drilling, and tapping operations, significantly shortening production cycles. Equipped with the FANUC 0i-TF PLUS intelligent CNC system, it implements automated programming and equipment protection, ensuring safe and efficient machining. Main components: BMT65/ER32 power tower components, X-axis transmission components, Z-axis transmission components, brake system assembly, spindle transmission components, center support components, reducer PLC control, tailstock components.

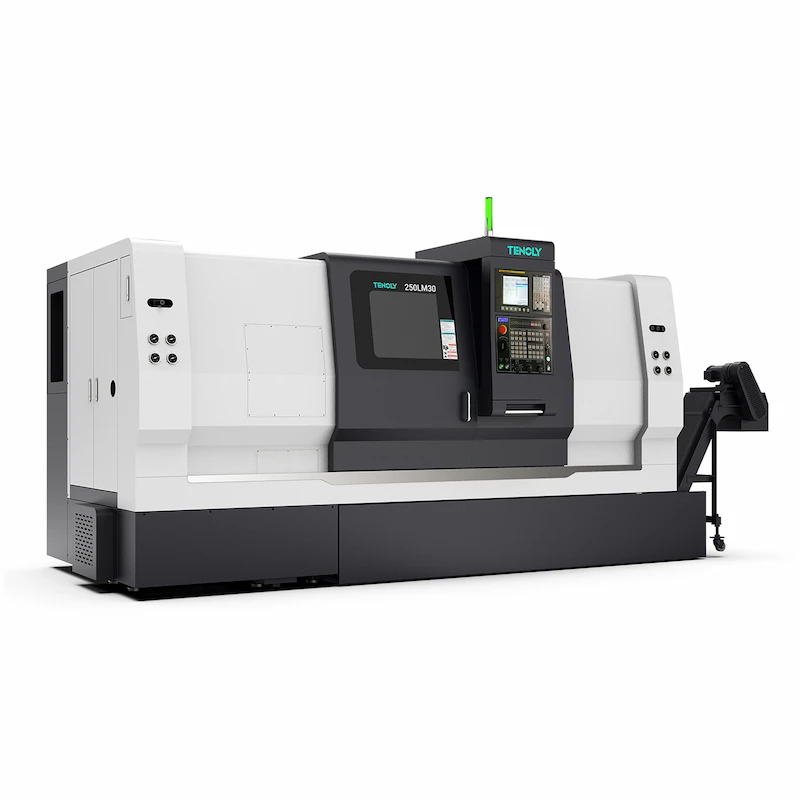

| ITEM | NAME | UNIT | 250LM30 |
| Travel | Max. bed rotating diameter | mm | Φ610/820 |
| Max. machining diameter | mm | Φ570/550 | |
| Max. rotating diameter on the turret | mm | Φ350/550 | |
| Max. machining length | mm | 3200 | |
| Distance between two centres | mm | 3230 | |
| Spindle Cylinders Chucks | Spindle nose | ASA | A2-11 |
| Hydraulic cylinder/chuck | inch | 12″ | |
| Spindle through-hole diameter | mm | Φ102 | |
| Max. bar through-hole diameter | mm | Φ90 | |
| Max. spindle speed | rpm | 2500 | |
| Spindle motor power | kw | 15/18.5 | |
| Spindle motor torque | Nm | 440-544 | |
| X/Z/Y/S Axis Feed Parameter | X-axis motor power | kw | 3 |
| Y-axis motor power | kw | – | |
| Z-axis motor power | kw | 3 | |
| X-axis travel | mm | 320 | |
| Y-axis travel | mm | – | |
| Z-axis travel | mm | 3300 | |
| X/Z axis rail specification | spec | Hard Rail | |
| Y-axis specification rail form | spec | – | |
| X-axis rapid traverse | mm/min | 18 | |
| Z-axis rapid traverse | mm/min | 18 | |
| Y-axis rapid traverse | mm/min | – | |
| Servo Drive Turret Parameters | Power turret type | / | BMT65 |
| Tool station | / | 12T | |
| M-axis motor power | kw | 7.5 | |
| M-axis motor torque | Nm | 47.8 | |
| Max. speed of power head | rpm | 6000 | |
| OD tool holder size | mm | 25*25 | |
| ID tool holder size | mm | Φ50 | |
| Adjacent tool change time | sec | 0.2 | |
| Positioning accuracy | / | ±0.005 | |
| Repeat positioning accuracy | / | ±0.003 | |
| Tailstock Parameters | Tailstock | / | Hydraulic Programmable Tailstock |
| Max. tailstock travel | mm | 2980 | |
| Sleeve diameter | mm | Φ100 | |
| Sleeve Stroke | mm | 80 | |
| Sleeve Taper | / | MT#5 | |
| External Dimensions | Overall dimensions | m | 6700*2300*2355 |
| Machine weight approx. | kg | 12500 | |
| Other | Cutting fluid tank volume | L | 470 |
| Cooling water pump power | kw | 0.75 | |
| Hydraulic unit box volume | L | 40 | |
| Motor power of hydraulic oil pump | kw | 1.5 | |
| Lubricating oil tank volume | L | 2 | |
| Automatic lubrication pump motor power | W | 50 |
The TENOLY 250L30 high-rigidity, hard-track horizontal turning-milling machine is designed to meet the demands of large, heavy-load precision machining. It precisely supports long shafts and large parts with a maximum diameter of 600mm and a length of up to 3 meters. It is widely used in high-end manufacturing industries such as automotive, petroleum, wind power, and shipbuilding.
The CNC turning machine features a 30-degree inclined box-type bed with a high-strength cast iron base, ensuring extreme stability and excellent thermal deformation control. Equipped with a 15/18.5 kw high-torque spindle, it precisely reduces operating vibration, improving cutting efficiency and surface quality.
The advanced 12-station servo turret enables high-speed tool changes in just 0.2 seconds, supporting simultaneous turning, milling, drilling, and tapping operations, significantly shortening production cycles. Equipped with the FANUC 0i-TF PLUS intelligent CNC system, it implements automated programming and equipment protection, ensuring safe and efficient machining. Main components: BMT65/ER32 power tower components, X-axis transmission components, Z-axis transmission components, brake system assembly, spindle transmission components, center support components, reducer PLC control, tailstock components.

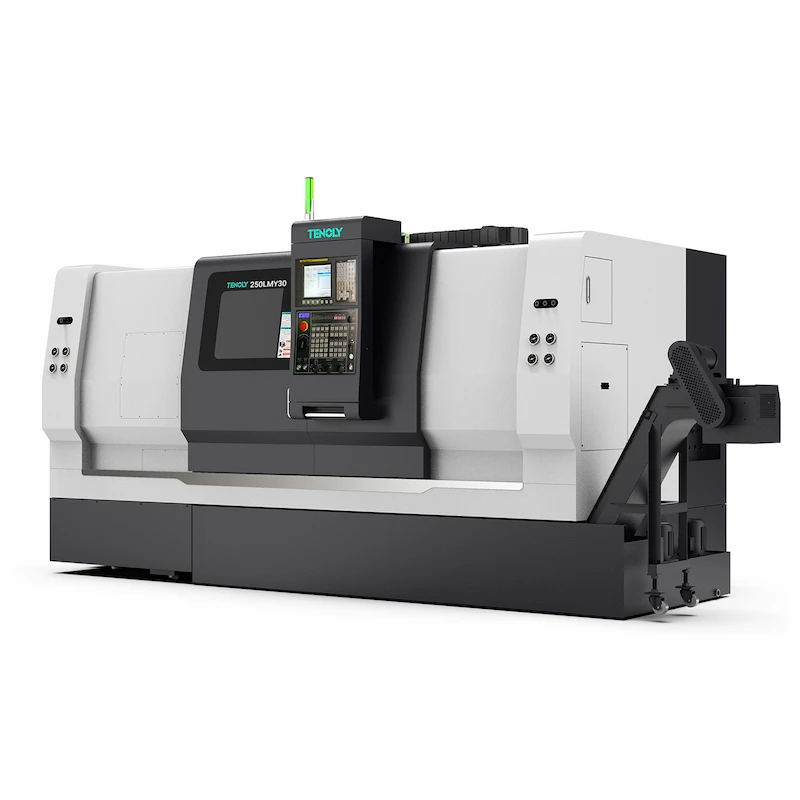

| ITEM | NAME | UNIT | 250LMY30 |
| Travel | Max. bed rotating diameter | mm | Φ820 |
| Max. machining diameter | mm | Φ540 | |
| Max. rotating diameter on the turret | mm | Φ540 | |
| Max. machining length | mm | 3080 | |
| Distance between two centres | mm | 3230 | |
| Spindle Cylinders Chucks | Spindle nose | ASA | A2-11 |
| Hydraulic cylinder/chuck | inch | 12″ | |
| Spindle through-hole diameter | mm | Φ102 | |
| Max. bar through-hole diameter | mm | Φ90 | |
| Max. spindle speed | rpm | 2500 | |
| Spindle motor power | kw | 15/18.5 | |
| Spindle motor torque | Nm | 440-544 | |
| X/Z/Y/S Axis Feed Parameter | X-axis motor power | kw | 3 |
| Y-axis motor power | kw | 1.8 | |
| Z-axis motor power | kw | 3 | |
| X-axis travel | mm | 318 | |
| Y-axis travel | mm | 120±60 | |
| Z-axis travel | mm | 3180 | |
| X/Z axis rail specification | spec | Hard Rail | |
| Y-axis specification rail form | spec | Roller rail 35 | |
| X-axis rapid traverse | mm/min | 18 | |
| Z-axis rapid traverse | mm/min | 18 | |
| Y-axis rapid traverse | mm/min | 8 | |
| Servo Drive Turret Parameters | Power turret type | / | BMT65 |
| Tool station | / | 12T | |
| M-axis motor power | kw | 7.5 | |
| M-axis motor torque | Nm | 47.8 | |
| Max. speed of power head | rpm | 6000 | |
| OD tool holder size | mm | 25*25 | |
| ID tool holder size | mm | Φ50 | |
| Adjacent tool change time | sec | 0.2 | |
| Positioning accuracy | / | ±0.005 | |
| Repeat positioning accuracy | / | ±0.003 | |
| Tailstock Parameters | Tailstock | / | Hydraulic Programmable Tailstock |
| Max. tailstock travel | mm | 2850 | |
| Sleeve diameter | mm | Φ100 | |
| Sleeve Stroke | mm | 80 | |
| Sleeve Taper | / | MT#5 | |
| External Dimensions | Overall dimensions | m | 6700*2300*2355 |
| Machine weight approx. | kg | 12800 | |
| Other | Cutting fluid tank volume | L | 470 |
| Cooling water pump power | kw | 0.75 | |
| Hydraulic unit box volume | L | 40 | |
| Motor power of hydraulic oil pump | kw | 1.5 | |
| Lubricating oil tank volume | L | 2 | |
| Automatic lubrication pump motor power | W | 50 |
The TENOLY 250L30 high-rigidity, hard-track horizontal turning-milling machine is designed to meet the demands of large, heavy-load precision machining. It precisely supports long shafts and large parts with a maximum diameter of 600mm and a length of up to 3 meters. It is widely used in high-end manufacturing industries such as automotive, petroleum, wind power, and shipbuilding.
The CNC turning machine features a 30-degree inclined box-type bed with a high-strength cast iron base, ensuring extreme stability and excellent thermal deformation control. Equipped with a 15/18.5 kw high-torque spindle, it precisely reduces operating vibration, improving cutting efficiency and surface quality.
The advanced 12-station servo turret enables high-speed tool changes in just 0.2 seconds, supporting simultaneous turning, milling, drilling, and tapping operations, significantly shortening production cycles. Equipped with the FANUC 0i-TF PLUS intelligent CNC system, it implements automated programming and equipment protection, ensuring safe and efficient machining. Main components: BMT65/ER32 power tower components, X-axis transmission components, Z-axis transmission components, brake system assembly, spindle transmission components, center support components, reducer PLC control, tailstock components.
