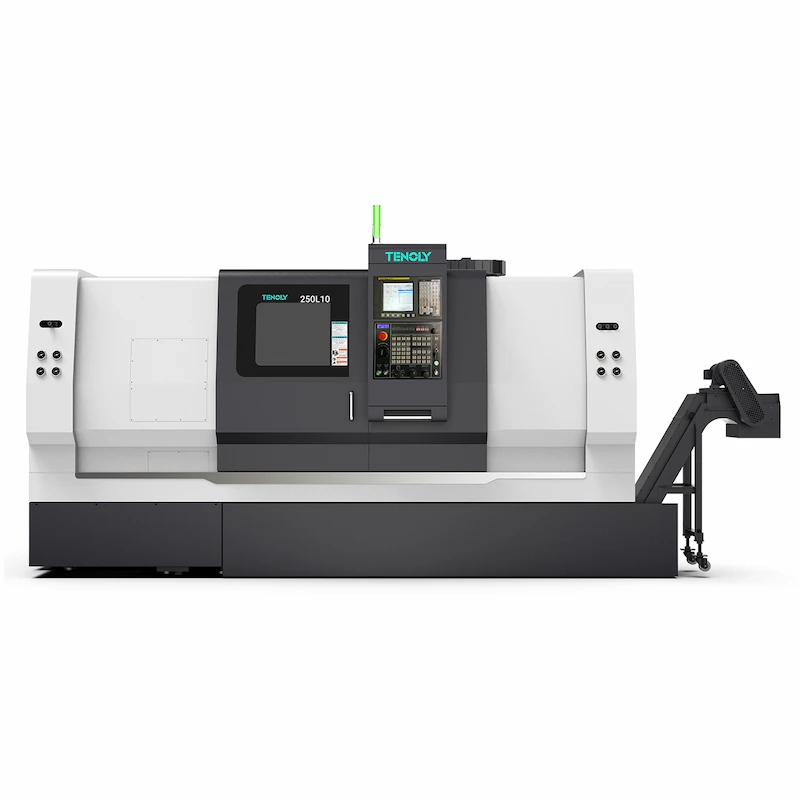

| ITEM | NAME | UNIT | 250L10 |
| Travel | Max. bed rotating diameter | mm | Φ860 |
| Max. machining diameter | mm | Φ570 | |
| Max. rotating diameter on the turret | mm | Φ570 | |
| Max. machining length | mm | 930 | |
| Distance between two centres | mm | 950 | |
| Spindle Cylinders Chucks | Spindle nose | ASA | A2-8 |
| Hydraulic cylinder/chuck | inch | 10″ | |
| Spindle through-hole diameter | mm | Φ86 | |
| Max. bar through-hole diameter | mm | Φ76 | |
| Max. spindle speed | rpm | 3200 | |
| Spindle motor power | kw | 15/18.5 | |
| Spindle motor torque | Nm | 286-472 | |
| X/Z/Y/S Axis Feed Parameter | X-axis motor power | kw | 3 |
| Y-axis motor power | kw | – | |
| Z-axis motor power | kw | 3 | |
| X-axis travel | mm | 300 | |
| Y-axis travel | mm | – | |
| Z-axis travel | mm | 980 | |
| X/Z axis rail specification | spec | Hard Rail | |
| Y-axis specification rail form | spec | – | |
| X-axis rapid traverse | mm/min | 20 | |
| Z-axis rapid traverse | mm/min | 20 | |
| Y-axis rapid traverse | mm/min | – | |
| Servo Drive Turret Parameters | Power turret type | / | Servo turret |
| Tool station | / | 12T | |
| M-axis motor power | kw | – | |
| M-axis motor torque | Nm | – | |
| Max. speed of power head | rpm | – | |
| OD tool holder size | mm | 32*32 | |
| ID tool holder size | mm | Φ50 | |
| Adjacent tool change time | sec | 0.2 | |
| Positioning accuracy | / | ±0.005 | |
| Repeat positioning accuracy | / | ±0.003 | |
| Tailstock Parameters | Tailstock | / | Hydraulic Programmable Tailstock |
| Max. tailstock travel | mm | 700 | |
| Sleeve diameter | mm | Φ100 | |
| Sleeve Stroke | mm | 80 | |
| Sleeve Taper | / | MT#5 | |
| External Dimensions | Overall dimensions | m | 4185*2300*2355 |
| Machine weight approx. | kg | 6800 | |
| Other | Cutting fluid tank volume | L | 270 |
| Cooling water pump power | kw | 0.75 | |
| Hydraulic unit box volume | L | 40 | |
| Motor power of hydraulic oil pump | kw | 1.5 | |
| Lubricating oil tank volume | L | 2 | |
| Automatic lubrication pump motor power | W | 50 |
●High-rigidity machine bed ensures stable machining.
The 30-degree slant-back, integrated box-type structure, combined with HT300 high-strength cast iron treated with secondary tempering and natural aging, ensures a low center of gravity, superior thermal stability, and exceptional mechanical rigidity. This effectively resists vibration and thermal deformation, ensuring stable and reliable machining even during extended periods of deep machining.
●High-efficiency servo turret for ultimate productivity.
Equipped with a 12-station servo-powered turret, tool changes are fast and precise, supporting a maximum speed of 6,000 rpm. This efficiently supports complex machining processes such as turning, milling, drilling, and tapping, significantly reducing non-turning time and improving productivity.
●Precision mechanical spindle for powerful power.
The spindle boasts 15/18.5 kW of power and a maximum speed of 3,200 rpm. Combined with an advanced cooling system, it effectively suppresses thermal deformation and vibration, ensuring dimensional accuracy and surface quality during workpiece machining.
●Advanced FANUC 0i-TF PLUS CNC System
The system supports large-capacity program storage and one-click execution from a CF card. It is CNC turning and milling center with advanced features such as intelligent tool management and preventive machine maintenance, optimizing machining processes, reducing downtime, and improving equipment utilization.
●Intelligent Operation and Maintenance
The user-friendly iHMI interface simplifies programming and operation, enabling quick learning and improving work efficiency. I/O Link i and FSSB fault diagnosis provide real-time monitoring and rapid fault location, ensuring safe and stable production.
●Comprehensive Configuration and Diverse Options
Supports a variety of programmable hydraulic tailstocks and hydraulic steady rests to meet diverse workholding requirements. A wide range of options, including Hexagon measurement systems, tool setters, and linear scales, helps customers achieve intelligent manufacturing and automated production.
| ITEM | NAME | UNIT | 250LM10 |
| Travel | Max. bed rotating diameter | mm | Φ860 |
| Max. machining diameter | mm | Φ550 | |
| Max. rotating diameter on the turret | mm | Φ550 | |
| Max. machining length | mm | 900 | |
| Distance between two centres | mm | 950 | |
| Spindle Cylinders Chucks | Spindle nose | ASA | A2-8 |
| Hydraulic cylinder/chuck | inch | 10″ | |
| Spindle through-hole diameter | mm | Φ86 | |
| Max. bar through-hole diameter | mm | Φ76 | |
| Max. spindle speed | rpm | 3200 | |
| Spindle motor power | kw | 15/18.5 | |
| Spindle motor torque | Nm | 286-472 | |
| X/Z/Y/S Axis Feed Parameter | X-axis motor power | kw | 3 |
| Y-axis motor power | kw | – | |
| Z-axis motor power | kw | 3 | |
| X-axis travel | mm | 280 | |
| Y-axis travel | mm | – | |
| Z-axis travel | mm | 965 | |
| X/Z axis rail specification | spec | Hard Rail | |
| Y-axis specification rail form | spec | – | |
| X-axis rapid traverse | mm/min | 20 | |
| Z-axis rapid traverse | mm/min | 20 | |
| Y-axis rapid traverse | mm/min | – | |
| Servo Drive Turret Parameters | Power turret type | / | BMT65 |
| Tool station | / | 12T | |
| M-axis motor power | kw | 7.5 | |
| M-axis motor torque | Nm | 47.8 | |
| Max. speed of power head | rpm | 6000 | |
| OD tool holder size | mm | 25*25 | |
| ID tool holder size | mm | Φ50 | |
| Adjacent tool change time | sec | 0.2 | |
| Positioning accuracy | / | ±0.005 | |
| Repeat positioning accuracy | / | ±0.003 | |
| Tailstock Parameters | Tailstock | / | Hydraulic Programmable Tailstock |
| Max. tailstock travel | mm | 680 | |
| Sleeve diameter | mm | Φ100 | |
| Sleeve Stroke | mm | 80 | |
| Sleeve Taper | / | MT#5 | |
| External Dimensions | Overall dimensions | m | 4185*2300*2355 |
| Machine weight approx. | kg | 6800 | |
| Other | Cutting fluid tank volume | L | 270 |
| Cooling water pump power | kw | 0.75 | |
| Hydraulic unit box volume | L | 40 | |
| Motor power of hydraulic oil pump | kw | 1.5 | |
| Lubricating oil tank volume | L | 2 | |
| Automatic lubrication pump motor power | W | 50 |
●High-rigidity machine bed ensures stable machining.
The 30-degree slant-back, integrated box-type structure, combined with HT300 high-strength cast iron treated with secondary tempering and natural aging, ensures a low center of gravity, superior thermal stability, and exceptional mechanical rigidity. This effectively resists vibration and thermal deformation, ensuring stable and reliable machining even during extended periods of deep machining.
●High-efficiency servo turret for ultimate productivity.
Equipped with a 12-station servo-powered turret, tool changes are fast and precise, supporting a maximum speed of 6,000 rpm. This efficiently supports complex machining processes such as turning, milling, drilling, and tapping, significantly reducing non-turning time and improving productivity.
●Precision mechanical spindle for powerful power.
The spindle boasts 15/18.5 kW of power and a maximum speed of 3,200 rpm. Combined with an advanced cooling system, it effectively suppresses thermal deformation and vibration, ensuring dimensional accuracy and surface quality during workpiece machining.
●Advanced FANUC 0i-TF PLUS CNC System
The system supports large-capacity program storage and one-click execution from a CF card. It is CNC turning and milling center with advanced features such as intelligent tool management and preventive machine maintenance, optimizing machining processes, reducing downtime, and improving equipment utilization.
●Intelligent Operation and Maintenance
The user-friendly iHMI interface simplifies programming and operation, enabling quick learning and improving work efficiency. I/O Link i and FSSB fault diagnosis provide real-time monitoring and rapid fault location, ensuring safe and stable production.
●Comprehensive Configuration and Diverse Options
Supports a variety of programmable hydraulic tailstocks and hydraulic steady rests to meet diverse workholding requirements. A wide range of options, including Hexagon measurement systems, tool setters, and linear scales, helps customers achieve intelligent manufacturing and automated production.
| ITEM | NAME | UNIT | 250LMY10 |
| Travel | Max. bed rotating diameter | mm | Φ860 |
| Max. machining diameter | mm | Φ540 | |
| Max. rotating diameter on the turret | mm | Φ540 | |
| Max. machining length | mm | 780 | |
| Distance between two centres | mm | 950 | |
| Spindle Cylinders Chucks | Spindle nose | ASA | A2-8 |
| Hydraulic cylinder/chuck | inch | 10″ | |
| Spindle through-hole diameter | mm | Φ86 | |
| Max. bar through-hole diameter | mm | Φ76 | |
| Max. spindle speed | rpm | 3200 | |
| Spindle motor power | kw | 15/18.5 | |
| Spindle motor torque | Nm | 286-472 | |
| X/Z/Y/S Axis Feed Parameter | X-axis motor power | kw | 3 |
| Y-axis motor power | kw | 1.8 | |
| Z-axis motor power | kw | 3 | |
| X-axis travel | mm | 310 | |
| Y-axis travel | mm | 120±60 | |
| Z-axis travel | mm | 880 | |
| X/Z axis rail specification | spec | Hard Rail | |
| Y-axis specification rail form | spec | Roller rail 35 | |
| X-axis rapid traverse | mm/min | 20 | |
| Z-axis rapid traverse | mm/min | 20 | |
| Y-axis rapid traverse | mm/min | 8 | |
| Servo Drive Turret Parameters | Power turret type | / | BMT65 |
| Tool station | / | 12T | |
| M-axis motor power | kw | 7.5 | |
| M-axis motor torque | Nm | 47.8 | |
| Max. speed of power head | rpm | 6000 | |
| OD tool holder size | mm | 25*25 | |
| ID tool holder size | mm | Φ50 | |
| Adjacent tool change time | sec | 0.2 | |
| Positioning accuracy | / | ±0.005 | |
| Repeat positioning accuracy | / | ±0.003 | |
| Tailstock Parameters | Tailstock | / | Hydraulic Programmable Tailstock |
| Max. tailstock travel | mm | 550 | |
| Sleeve diameter | mm | Φ100 | |
| Sleeve Stroke | mm | 80 | |
| Sleeve Taper | / | MT#5 | |
| External Dimensions | Overall dimensions | m | 4185*2300*2355 |
| Machine weight approx. | kg | 7200 | |
| Other | Cutting fluid tank volume | L | 270 |
| Cooling water pump power | kw | 0.75 | |
| Hydraulic unit box volume | L | 40 | |
| Motor power of hydraulic oil pump | kw | 1.5 | |
| Lubricating oil tank volume | L | 2 | |
| Automatic lubrication pump motor power | W | 50 |
●High-rigidity machine bed ensures stable machining.
The 30-degree slant-back, integrated box-type structure, combined with HT300 high-strength cast iron treated with secondary tempering and natural aging, ensures a low center of gravity, superior thermal stability, and exceptional mechanical rigidity. This effectively resists vibration and thermal deformation, ensuring stable and reliable machining even during extended periods of deep machining.
●High-efficiency servo turret for ultimate productivity.
Equipped with a 12-station servo-powered turret, tool changes are fast and precise, supporting a maximum speed of 6,000 rpm. This efficiently supports complex machining processes such as turning, milling, drilling, and tapping, significantly reducing non-turning time and improving productivity.
●Precision mechanical spindle for powerful power.
The spindle boasts 15/18.5 kW of power and a maximum speed of 3,200 rpm. Combined with an advanced cooling system, it effectively suppresses thermal deformation and vibration, ensuring dimensional accuracy and surface quality during workpiece machining.
●Advanced FANUC 0i-TF PLUS CNC System
The system supports large-capacity program storage and one-click execution from a CF card. It is CNC turning and milling center with advanced features such as intelligent tool management and preventive machine maintenance, optimizing machining processes, reducing downtime, and improving equipment utilization.
●Intelligent Operation and Maintenance
The user-friendly iHMI interface simplifies programming and operation, enabling quick learning and improving work efficiency. I/O Link i and FSSB fault diagnosis provide real-time monitoring and rapid fault location, ensuring safe and stable production.
●Comprehensive Configuration and Diverse Options
Supports a variety of programmable hydraulic tailstocks and hydraulic steady rests to meet diverse workholding requirements. A wide range of options, including Hexagon measurement systems, tool setters, and linear scales, helps customers achieve intelligent manufacturing and automated production.
