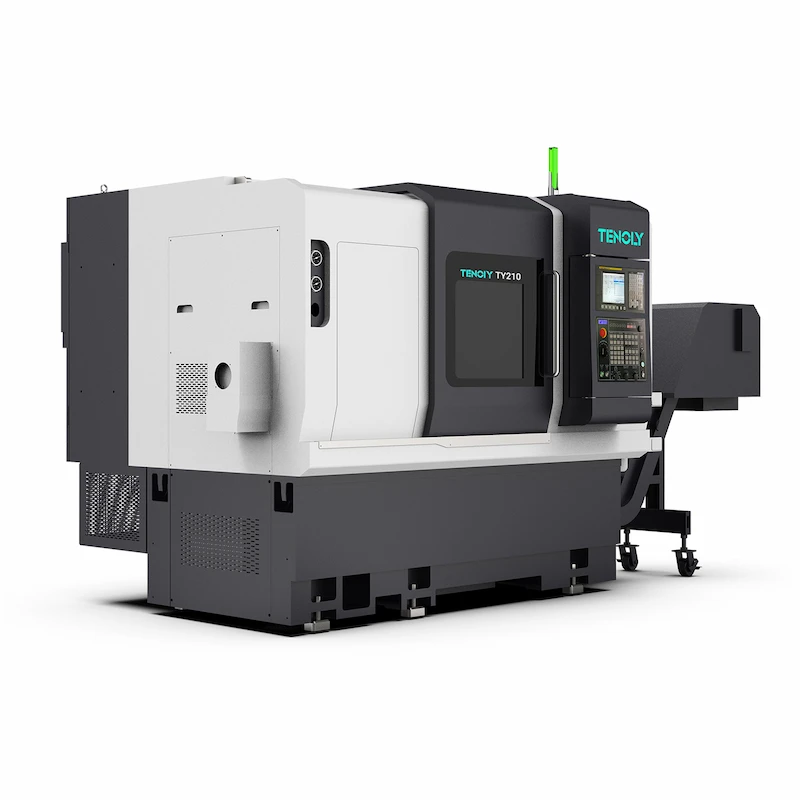

| ITEM | NAME | UNIT | TY210 |
| Travel | Max. bed rotation dia. | mm | Φ620 |
| Max. machining dia. | mm | Φ510 | |
| Max. rotating dia. on the tool rest | mm | Φ300 | |
| Max. machining length | mm | 500 | |
| Distance between two centres | mm | 600 | |
| Spindle Cylinders Chucks | Spindle nose | ASA | A2-8 |
| Hydraulic cylinder/chuck | inch | 10″ | |
| Spindle through-hole dia. | mm | Φ86 | |
| Max. bar through-hole dia. | mm | Φ76 | |
| Max. spindle speed | rpm | 3200 | |
| Spindle motor power | kw | 15-18.5 | |
| Spindle motor torque | Nm | 100/196 | |
| Sub-Spindle Cylinders Chucks | Sub-spindle nose | ASA | – |
| Sub-spindle hydraulic cylinder/collet | inch | – | |
| Sub-spindle through-hole dia. | mm | – | |
| Max. sub-spindle bar through-hole dia. | mm | – | |
| Sub-spindle max. speed | rpm | – | |
| Sub-spindle motor power | kw | – | |
| X/Z/Y/S Axis Feed Parameter | X-axis motor power | kw | 3 |
| Y-axis motor power | kw | – | |
| Z-axis motor power | kw | 3 | |
| S-axis motor power | kw | – | |
| X-axis travel | mm | 270 | |
| Y-axis travel | mm | – | |
| Z-axis travel | mm | 570 | |
| X/Z axis linear guide type | spes | 35 Roller | |
| Y-axis linear guide type | spes | – | |
| S-axis travel | mm | – | |
| X axis rapid traverse | mm/min | 20 | |
| Y-axis rapid traverse | mm/min | – | |
| Z axis rapid traverse | mm/min | 20 | |
| S-axis rapid traverse | mm/min | – | |
| Servo Drive Turret Parameters | Power turret type | / | Servo turret |
| Tool station | / | 10T/12T | |
| M-axis motor power | kw | – | |
| M-axis motor torque | Nm | – | |
| Max. speed of power head | rpm | – | |
| OD tool holder specification | mm | 25*25 | |
| ID tool holder specification | mm | Φ40 | |
| Adjacent tool change time | sec | 0.15 | |
| Positioning accuracy | / | ±2″ | |
| Repeat positioning accuracy | / | ±1″ | |
| Tailstock Parameters | Tailstock | / | Hydraulic Programmable Tailstock |
| Max. tailstock travel | mm | 440 | |
| Sleeve dia. | mm | Φ100 | |
| Sleeve Stroke | mm | 100 | |
| Sleeve Taper | / | MT#5 | |
| External Dimensions | Overall dimensions | m | 2600*2100*1800 |
| Machine weight approx. | kg | 5000 | |
| Other | Cutting fluid tank volume | L | 130 |
| Cooling water pump power | kw | 0.75 | |
| Hydraulic unit box volume | L | 40 | |
| Hydraulic oil pump motor power | kw | 1.5 | |
| Lubricating oil tank volume | L | 2 | |
| Automatic lubrication pump motor power | w | 50 |
This high-performance turning and milling machine is designed for high-rigidity and high-precision machining, suitable for heavy-duty turning conditions. With a rotation diameter of 700mm, a machining diameter of 510mm, and a machining length of 520mm, it meets the needs of mass production of most medium-sized parts. The heavy-duty cast iron HT300 base ensures machine stability, and the turret design supports multi-tool switching for efficient completion of complex processes. The electric spindle and cooling system enhance machining accuracy and surface finish. Multiple protections and anomaly detection features ensure safe production. Whether machining automotive parts or machining, this CNC turning machine significantly improves productivity and quality, making it an ideal choice for automated production.

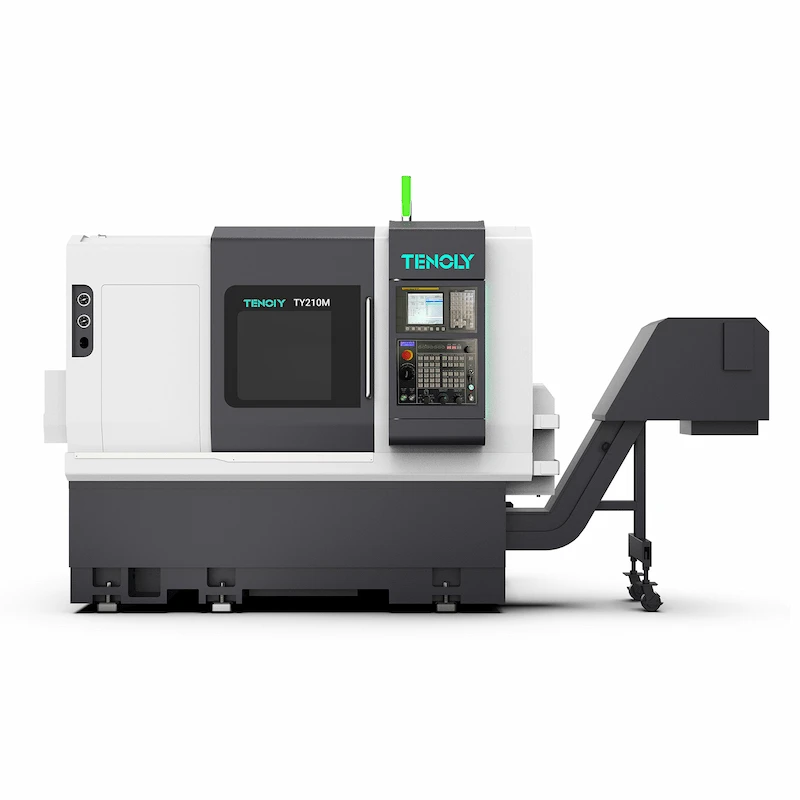

| ITEM | NAME | UNIT | TY210M |
| Travel | Max. bed rotation dia. | mm | Φ620 |
| Max. machining dia. | mm | Φ400 | |
| Max. rotating dia. on the tool rest | mm | Φ300 | |
| Max. machining length | mm | 390 | |
| Distance between two centres | mm | 600 | |
| Spindle Cylinders Chucks | Spindle nose | ASA | A2-8 |
| Hydraulic cylinder/chuck | inch | 10″ | |
| Spindle through-hole dia. | mm | Φ86 | |
| Max. bar through-hole dia. | mm | Φ76 | |
| Max. spindle speed | rpm | 2500 | |
| Spindle motor power | kw | 17 | |
| Spindle motor torque | Nm | 180/400 | |
| Sub-Spindle Cylinders Chucks | Sub-spindle nose | ASA | – |
| Sub-spindle hydraulic cylinder/collet | inch | – | |
| Sub-spindle through-hole dia. | mm | – | |
| Max. sub-spindle bar through-hole dia. | mm | – | |
| Sub-spindle max. speed | rpm | – | |
| Sub-spindle motor power | kw | – | |
| X/Z/Y/S Axis Feed Parameter | X-axis motor power | kw | 3 |
| Y-axis motor power | kw | – | |
| Z-axis motor power | kw | 3 | |
| S-axis motor power | kw | – | |
| X-axis travel | mm | 200 | |
| Y-axis travel | mm | – | |
| Z-axis travel | mm | 470 | |
| X/Z axis linear guide type | spes | 35 Roller | |
| Y-axis linear guide type | spes | – | |
| S-axis travel | mm | – | |
| X axis rapid traverse | mm/min | 20 | |
| Y-axis rapid traverse | mm/min | – | |
| Z axis rapid traverse | mm/min | 20 | |
| S-axis rapid traverse | mm/min | – | |
| Servo Drive Turret Parameters | Power turret type | / | BMT65 |
| Tool station | / | 12T | |
| M-axis motor power | kw | 7.5 | |
| M-axis motor torque | Nm | 35 | |
| Max. speed of power head | rpm | 6000 | |
| OD tool holder specification | mm | 25*25 | |
| ID tool holder specification | mm | Φ50 | |
| Adjacent tool change time | sec | 0.15 | |
| Positioning accuracy | / | ±2″ | |
| Repeat positioning accuracy | / | ±1″ | |
| Tailstock Parameters | Tailstock | / | Hydraulic Programmable Tailstock |
| Max. tailstock travel | mm | 440 | |
| Sleeve dia. | mm | Φ100 | |
| Sleeve Stroke | mm | 100 | |
| Sleeve Taper | / | MT#5 | |
| External Dimensions | Overall dimensions | m | 2600*2100*1800 |
| Machine weight approx. | kg | 5200 | |
| Other | Cutting fluid tank volume | L | 130 |
| Cooling water pump power | kw | 0.75 | |
| Hydraulic unit box volume | L | 40 | |
| Hydraulic oil pump motor power | kw | 1.5 | |
| Lubricating oil tank volume | L | 2 | |
| Automatic lubrication pump motor power | w | 50 |
This high-performance turning and milling machine is designed for high-rigidity and high-precision machining, suitable for heavy-duty turning conditions. With a rotation diameter of 700mm, a machining diameter of 510mm, and a machining length of 520mm, it meets the needs of mass production of most medium-sized parts. The heavy-duty cast iron HT300 base ensures machine stability, and the turret design supports multi-tool switching for efficient completion of complex processes. The electric spindle and cooling system enhance machining accuracy and surface finish. Multiple protections and anomaly detection features ensure safe production. Whether machining automotive parts or machining, this CNC turning machine significantly improves productivity and quality, making it an ideal choice for automated production.
This high-performance turning and milling machine is designed for high-rigidity and high-precision machining, suitable for heavy-duty turning conditions. With a rotation diameter of 700mm, a machining diameter of 510mm, and a machining length of 520mm, it meets the needs of mass production of most medium-sized parts. The heavy-duty cast iron HT300 base ensures machine stability, and the turret design supports multi-tool switching for efficient completion of complex processes. The electric spindle and cooling system enhance machining accuracy and surface finish. Multiple protections and anomaly detection features ensure safe production. Whether machining automotive parts or machining, this CNC turning machine significantly improves productivity and quality, making it an ideal choice for automated production.
