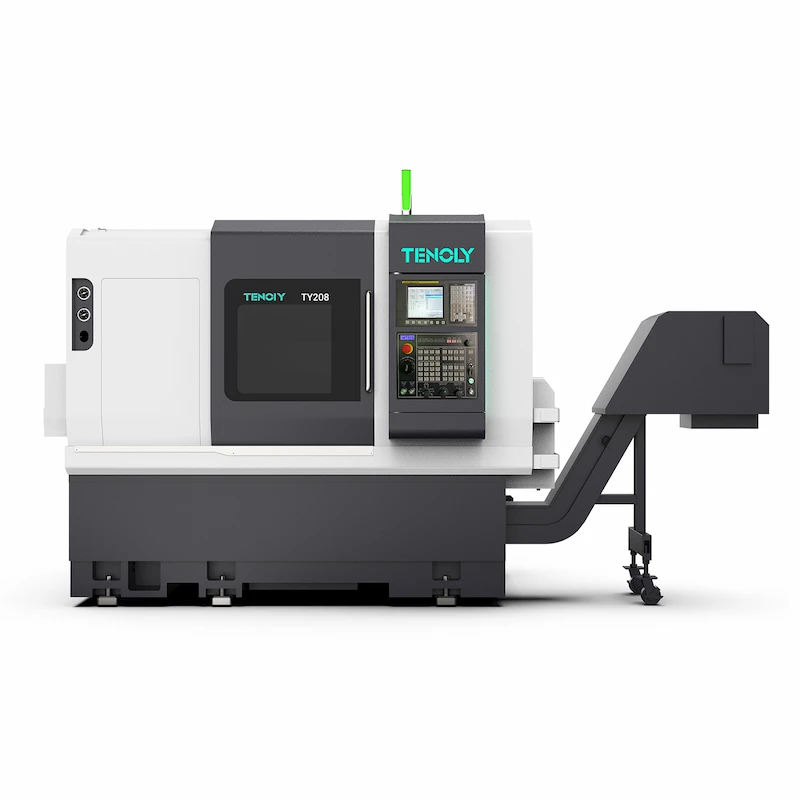

| ITEM | NAME | UNIT | TY208 |
| Travel | Max. bed rotation dia. | mm | Φ620 |
| Max. machining dia. | mm | Φ510 | |
| Max. rotating dia. on the tool rest | mm | Φ300 | |
| Max. machining length | mm | 520 | |
| Distance between two centres | mm | 600 | |
| Spindle Cylinders Chucks | Spindle nose | ASA | A2-6 |
| Hydraulic cylinder/chuck | inch | 8″ | |
| Spindle through-hole dia. | mm | Φ79/66 | |
| Max. bar through-hole dia. | mm | Φ65/52 | |
| Max. spindle speed | rpm | 4000/4300 | |
| Spindle motor power | kw | 15-18.5（19） | |
| Spindle motor torque | Nm | 100-196(90-200) | |
| Sub-Spindle Cylinders Chucks | Sub-spindle nose | ASA | – |
| Sub-spindle hydraulic cylinder/collet | inch | – | |
| Sub-spindle through-hole dia. | mm | – | |
| Max. sub-spindle bar through-hole dia. | mm | – | |
| Sub-spindle max. speed | rpm | – | |
| Sub-spindle motor power | kw | – | |
| X/Z/Y/S Axis Feed Parameter | X-axis motor power | kw | 3 |
| Y-axis motor power | kw | – | |
| Z-axis motor power | kw | 3 | |
| S-axis motor power | kw | – | |
| X-axis travel | mm | 270 | |
| Y-axis travel | mm | – | |
| Z-axis travel | mm | 570 | |
| X/Z axis linear guide type | spes | 35 Roller | |
| Y-axis linear guide type | spes | – | |
| S-axis travel | mm | – | |
| X axis rapid traverse | mm/min | 20 | |
| Y-axis rapid traverse | mm/min | – | |
| Z axis rapid traverse | mm/min | 20 | |
| S-axis rapid traverse | mm/min | – | |
| Servo Drive Turret Parameters | Power turret type | / | Servo turret |
| Tool station | / | 12T | |
| M-axis motor power | kw | – | |
| M-axis motor torque | Nm | – | |
| Max. speed of power head | rpm | – | |
| OD tool holder specification | mm | 25*25 | |
| ID tool holder specification | mm | Φ40 | |
| Adjacent tool change time | sec | 0.15 | |
| Positioning accuracy | / | ±2″ | |
| Repeat positioning accuracy | / | ±1″ | |
| Tailstock Parameters | Tailstock | / | Hydraulic Programmable Tailstock |
| Max. tailstock travel | mm | 440 | |
| Sleeve dia. | mm | Φ100 | |
| Sleeve Stroke | mm | 100 | |
| Sleeve Taper | / | MT#5 | |
| External Dimensions | Overall dimensions | m | 2600*2100*1800 |
| Machine weight approx. | kg | 5000 | |
| Other | Cutting fluid tank volume | L | 130 |
| Cooling water pump power | kw | 0.75 | |
| Hydraulic unit box volume | L | 40 | |
| Hydraulic oil pump motor power | kw | 1.5 | |
| Lubricating oil tank volume | L | 2 | |
| Automatic lubrication pump motor power | w | 50 |
The TENOLY 208 series CNC turning and milling lathe is designed for efficient machining of medium-to-large parts. It supports a 660mm rotation diameter, a 380mm machining diameter, and a 370mm machining length, meeting the mass production demands of complex parts in industries such as automotive, machinery, and mold manufacturing.
The CNC lathe features an HT300 heavy-duty cast iron base, ensuring stability and rigidity, reducing turning vibration and improving machining accuracy. The BMT55 turret design integrates an integrated positive Y-axis and gantry structure, enabling automatic multi-tool switching, reducing changeover time and increasing productivity.
Equipped with a true-tight synchronous electric spindle and a cooling system, it effectively controls thermal deformation and ensures continuous high-precision machining. The turning center also features comprehensive intelligent protection and anomaly detection functions, providing timely warnings of machine anomalies and reducing the risk of downtime. Intelligent features such as tool life management facilitate precise maintenance and enhance machine reliability.
The system supports flexible spindle speed adjustment and reverse rotation to meet the needs of diverse machining processes and environments. The TENOLY 208 series CNC lathe is committed to providing manufacturing companies with stable and reliable processing solutions, helping to improve production efficiency and product quality, and promoting the upgrade of intelligent manufacturing.

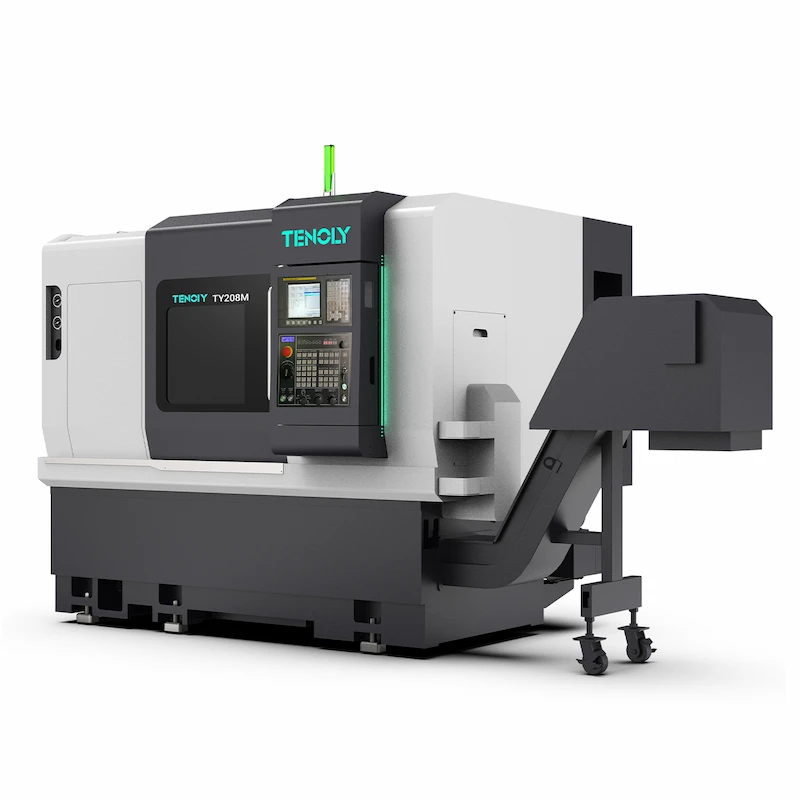

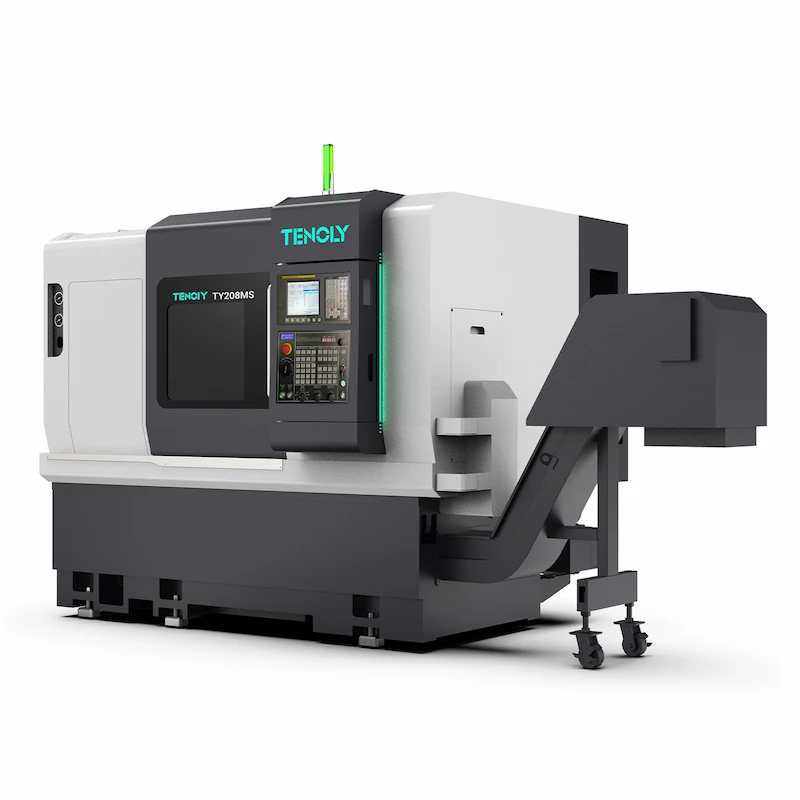

| ITEM | NAME | UNIT | TY208M | TY208MS |
| Travel | Max. bed rotation dia. | mm | Φ620 | Φ680 |
| Max. machining dia. | mm | Φ400 | Φ370 | |
| Max. rotating dia. on the tool rest | mm | Φ300 | Φ300 | |
| Max. machining length | mm | 420 | 420 | |
| Distance between two centres | mm | 600 | – | |
| Spindle Cylinders Chucks | Spindle nose | ASA | A2-6 | A2-6 |
| Hydraulic cylinder/chuck | inch | 8″ | 8″ | |
| Spindle through-hole dia. | mm | Φ79/66 | Φ79/66 | |
| Max. bar through-hole dia. | mm | Φ65/52 | Φ65/52 | |
| Max. spindle speed | rpm | 4000/4300 | 4000/4300 | |
| Spindle motor power | kw | 19 | 19 | |
| Spindle motor torque | Nm | 90-200 | 90-200 | |
| Sub-Spindle Cylinders Chucks | Sub-spindle nose | ASA | – | A2-5 |
| Sub-spindle hydraulic cylinder/collet | inch | – | 6″ | |
| Sub-spindle through-hole dia. | mm | – | Φ56 | |
| Max. sub-spindle bar through-hole dia. | mm | – | Φ46 | |
| Sub-spindle max. speed | rpm | – | 5500 | |
| Sub-spindle motor power | kw | – | 17.5 | |
| X/Z/Y/S Axis Feed Parameter | X-axis motor power | kw | 3 | 2.5 |
| Y-axis motor power | kw | – | – | |
| Z-axis motor power | kw | 3 | 2.5 | |
| S-axis motor power | kw | – | 1.2 | |
| X-axis travel | mm | 210 | 230 | |
| Y-axis travel | mm | – | – | |
| Z-axis travel | mm | 500 | 510 | |
| X/Z axis linear guide type | spes | 35 Roller | 35 Roller | |
| Y-axis linear guide type | spes | – | 25 Roller | |
| S-axis travel | mm | – | 600 | |
| X axis rapid traverse | mm/min | 20 | 20 | |
| Y-axis rapid traverse | mm/min | – | – | |
| Z axis rapid traverse | mm/min | 20 | 20 | |
| S-axis rapid traverse | mm/min | – | 24 | |
| Servo Drive Turret Parameters | Power turret type | / | BMT55 | BMT55 |
| Tool station | / | 12T | 12T | |
| M-axis motor power | kw | 5.5 | 5.5 | |
| M-axis motor torque | Nm | 35 | 35 | |
| Max. speed of power head | rpm | 6000 | 6000 | |
| OD tool holder specification | mm | 25*25 | 25*25 | |
| ID tool holder specification | mm | Φ40 | Φ40 | |
| Adjacent tool change time | sec | 0.15 | 0.15 | |
| Positioning accuracy | / | ±2″ | ±2″ | |
| Repeat positioning accuracy | / | ±1″ | ±1″ | |
| Tailstock Parameters | Tailstock | / | Hydraulic Programmable Tailstock | – |
| Max. tailstock travel | mm | 440 | – | |
| Sleeve dia. | mm | Φ100 | – | |
| Sleeve Stroke | mm | 100 | – | |
| Sleeve Taper | / | MT#5 | – | |
| External Dimensions | Overall dimensions | m | 2600*2100*1800 | 2600*1700*2100 |
| Machine weight approx. | kg | 5200 | 5200 | |
| Other | Cutting fluid tank volume | L | 130 | 130 |
| Cooling water pump power | kw | 0.75 | 0.75 | |
| Hydraulic unit box volume | L | 40 | 40 | |
| Hydraulic oil pump motor power | kw | 1.5 | 1.5 | |
| Lubricating oil tank volume | L | 2 | 2 | |
| Automatic lubrication pump motor power | w | 50 | 50 |
The TENOLY 208 series CNC turning and milling lathe is designed for efficient machining of medium-to-large parts. It supports a 660mm rotation diameter, a 380mm machining diameter, and a 370mm machining length, meeting the mass production demands of complex parts in industries such as automotive, machinery, and mold manufacturing.
The CNC lathe features an HT300 heavy-duty cast iron base, ensuring stability and rigidity, reducing turning vibration and improving machining accuracy. The BMT55 turret design integrates an integrated positive Y-axis and gantry structure, enabling automatic multi-tool switching, reducing changeover time and increasing productivity.
Equipped with a true-tight synchronous electric spindle and a cooling system, it effectively controls thermal deformation and ensures continuous high-precision machining. The turning center also features comprehensive intelligent protection and anomaly detection functions, providing timely warnings of machine anomalies and reducing the risk of downtime. Intelligent features such as tool life management facilitate precise maintenance and enhance machine reliability.
The system supports flexible spindle speed adjustment and reverse rotation to meet the needs of diverse machining processes and environments. The TENOLY 208 series CNC lathe is committed to providing manufacturing companies with stable and reliable processing solutions, helping to improve production efficiency and product quality, and promoting the upgrade of intelligent manufacturing.

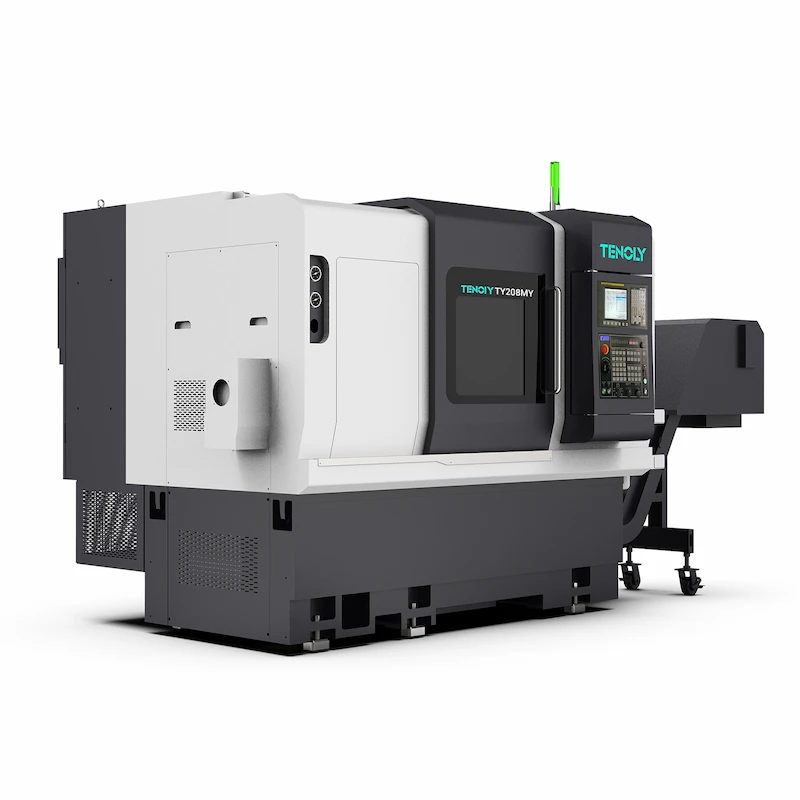

| ITEM | NAME | UNIT | TY208MY | TY208MSY |
| Travel | Max. bed rotation dia. | mm | Φ700 | Φ700 |
| Max. machining dia. | mm | Φ420 | Φ300 | |
| Max. rotating dia. on the tool rest | mm | Φ300 | Φ300 | |
| Max. machining length | mm | 360 | 400 | |
| Distance between two centres | mm | 600 | – | |
| Spindle Cylinders Chucks | Spindle nose | ASA | A2-6 | A2-6 |
| Hydraulic cylinder/chuck | inch | 8″ | 8″ | |
| Spindle through-hole dia. | mm | Φ79/66 | Φ79/66 | |
| Max. bar through-hole dia. | mm | Φ65/52 | Φ65/52 | |
| Max. spindle speed | rpm | 4000/4300 | 4000/4300 | |
| Spindle motor power | kw | 19 | 19 | |
| Spindle motor torque | Nm | 90-200 | 90-200 | |
| Sub-Spindle Cylinders Chucks | Sub-spindle nose | ASA | – | A2-5 |
| Sub-spindle hydraulic cylinder/collet | inch | – | 6″ | |
| Sub-spindle through-hole dia. | mm | – | Φ56 | |
| Max. sub-spindle bar through-hole dia. | mm | – | Φ46 | |
| Sub-spindle max. speed | rpm | – | 5500 | |
| Sub-spindle motor power | kw | – | 17.5 | |
| X/Z/Y/S Axis Feed Parameter | X-axis motor power | kw | 2.5 | 2.5 |
| Y-axis motor power | kw | 1.2 | 1.2 | |
| Z-axis motor power | kw | 2.5 | 2.5 | |
| S-axis motor power | kw | – | 1.2 | |
| X-axis travel | mm | 260 | 200 | |
| Y-axis travel | mm | 100±50 | 100±50 | |
| Z-axis travel | mm | 450 | 492 | |
| X/Z axis linear guide type | spes | 35 Roller | 35 Roller | |
| Y-axis linear guide type | spes | 25 Roller | 25 Roller | |
| S-axis travel | mm | – | 600 | |
| X axis rapid traverse | mm/min | 20 | 20 | |
| Y-axis rapid traverse | mm/min | 8 | 8 | |
| Z axis rapid traverse | mm/min | 20 | 20 | |
| S-axis rapid traverse | mm/min | – | 24 | |
| Servo Drive Turret Parameters | Power turret type | / | BMT55 | BMT55 |
| Tool station | / | 12T | 12T | |
| M-axis motor power | kw | 5.5 | 5.5 | |
| M-axis motor torque | Nm | 35 | 35 | |
| Max. speed of power head | rpm | 6000 | 6000 | |
| OD tool holder specification | mm | 25*25 | 25*25 | |
| ID tool holder specification | mm | Φ40 | Φ40 | |
| Adjacent tool change time | sec | 0.15 | 0.15 | |
| Positioning accuracy | / | ±2″ | ±2″ | |
| Repeat positioning accuracy | / | ±1″ | ±1″ | |
| Tailstock Parameters | Tailstock | / | Hydraulic Programmable Tailstock | – |
| Max. tailstock travel | mm | 440 | – | |
| Sleeve dia. | mm | Φ100 | – | |
| Sleeve Stroke | mm | 100 | – | |
| Sleeve Taper | / | MT#5 | – | |
| External Dimensions | Overall dimensions | m | 2700*2400*2050 | 2700*2400*2050 |
| Machine weight approx. | kg | 5200 | 5300 | |
| Other | Cutting fluid tank volume | L | 130 | 130 |
| Cooling water pump power | kw | 0.75 | 0.75 | |
| Hydraulic unit box volume | L | 40 | 40 | |
| Hydraulic oil pump motor power | kw | 1.5 | 1.5 | |
| Lubricating oil tank volume | L | 2 | 2 | |
| Automatic lubrication pump motor power | w | 50 | 50 |
The TENOLY 208 series CNC turning and milling lathe is designed for efficient machining of medium-to-large parts. It supports a 660mm rotation diameter, a 380mm machining diameter, and a 370mm machining length, meeting the mass production demands of complex parts in industries such as automotive, machinery, and mold manufacturing.
The CNC lathe features an HT300 heavy-duty cast iron base, ensuring stability and rigidity, reducing turning vibration and improving machining accuracy. The BMT55 turret design integrates an integrated positive Y-axis and gantry structure, enabling automatic multi-tool switching, reducing changeover time and increasing productivity.
Equipped with a true-tight synchronous electric spindle and a cooling system, it effectively controls thermal deformation and ensures continuous high-precision machining. The turning center also features comprehensive intelligent protection and anomaly detection functions, providing timely warnings of machine anomalies and reducing the risk of downtime. Intelligent features such as tool life management facilitate precise maintenance and enhance machine reliability.
The system supports flexible spindle speed adjustment and reverse rotation to meet the needs of diverse machining processes and environments. The TENOLY 208 series CNC lathe is committed to providing manufacturing companies with stable and reliable processing solutions, helping to improve production efficiency and product quality, and promoting the upgrade of intelligent manufacturing.
