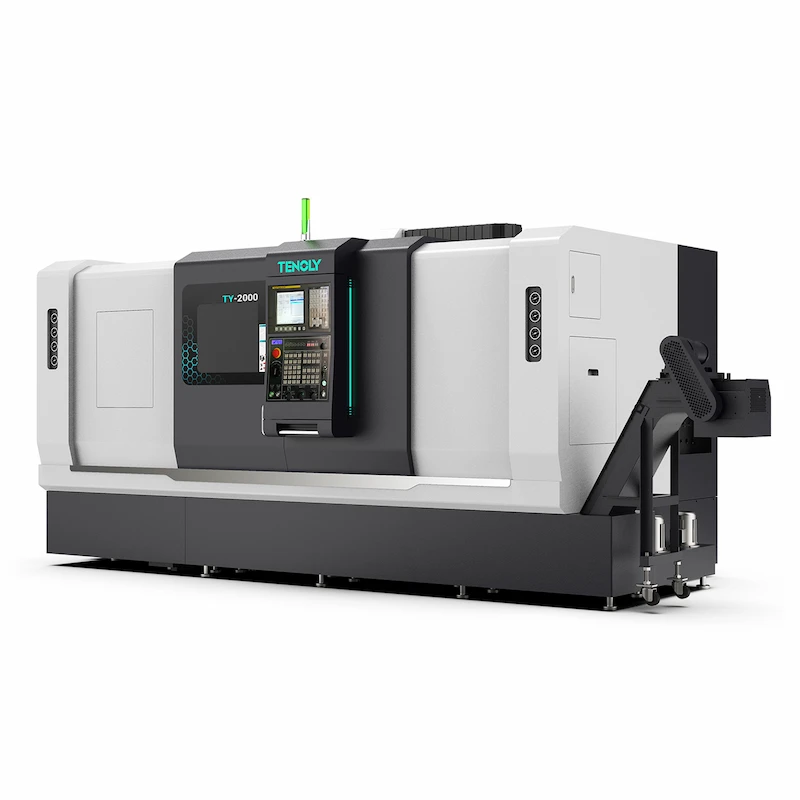

| ITEM | NAME | UNIT | TY2000 |
| Travel | Max. bed rotation dia. | mm | Φ690 |
| Max. machining dia. | mm | Φ640 | |
| Max. rotating dia. on the tool rest | mm | Φ350 | |
| Max. machining length | mm | 1980 | |
| Distance between two centres | mm | 2050 | |
| Spindle Cylinders Chucks | Spindle nose | ASA | A2-11 |
| Hydraulic cylinder/chuck | inch | 12″ | |
| Spindle through-hole dia. | mm | Φ102 | |
| Max. bar through-hole dia. | mm | Φ90 | |
| Max. spindle speed | rpm | 2500 | |
| Spindle motor power | kw | 15/18.5 | |
| Spindle motor torque | Nm | 440/544 | |
| Sub-Spindle Cylinders Chucks | Sub-spindle nose | ASA | – |
| Sub-spindle hydraulic cylinder/collet | inch | – | |
| Sub-spindle through-hole dia. | mm | – | |
| Max. sub-spindle bar through-hole dia. | mm | – | |
| Sub-spindle max. speed | rpm | – | |
| Sub-spindle motor power | kw | – | |
| X/Z/Y/S Axis Feed Parameter | X-axis motor power | kw | 3 |
| Y-axis motor power | kw | – | |
| Z-axis motor power | kw | 3 | |
| S-axis motor power | kw | – | |
| X-axis travel | mm | 335 | |
| Y-axis travel | mm | – | |
| Z-axis travel | mm | 2030 | |
| X/Z axis linear guide type | spes | 45 Roller | |
| S-axis travel | mm | – | |
| X axis rapid traverse | mm/min | 20 | |
| Z axis rapid traverse | mm/min | 20 | |
| Y-axis rapid traverse | mm/min | – | |
| S-axis rapid traverse | mm/min | – | |
| Servo Drive Turret Parameters | Power turret type | / | Servo turret |
| Tool station | / | 12T | |
| M-axis motor power | kw | – | |
| M-axis motor torque | Nm | – | |
| Max. speed of power head | rpm | – | |
| OD tool holder specification | mm | 32*32 | |
| ID tool holder specification | mm | Φ50 | |
| Adjacent tool change time | sec | 0.2 | |
| X-axis Positioning Accuracy | 0.008 | ||
| Z-axis Positioning Accuracy | 0.02 | ||
| X-axis Repeatability | / | 0.005 | |
| Z-axis Repeatability | / | 0.008 | |
| Tailstock Parameters | Tailstock | / | Hydraulic Programmable Tailstock |
| Max. tailstock travel | mm | 2050 | |
| Sleeve dia. | mm | Φ100 | |
| Sleeve Stroke | mm | 100 | |
| Sleeve Taper | / | MT#5 | |
| External Dimensions | Overall dimensions | m | 5000*2150*2160 |
| Machine weight approx. | kg | 8800 | |
| Other | Cutting fluid tank volume | L | 410 |
| Cooling water pump power | kw | 0.75 | |
| Hydraulic unit box volume | L | 50 | |
| Hydraulic oil pump motor power | kw | 1.5 | |
| Lubricating oil tank volume | L | 2 | |
| Automatic lubrication pump motor power | w | 50 |
The Eagle 2000 milling machine is designed for efficient and precise machining of large, complex parts, offering superior performance and stable machining capabilities. Supporting a maximum machining length of 2030 mm, it features a highly rigid HT300 cast iron one-piece bed with a 30-degree stepped flat rail structure. Optimized through Finite Element Analysis (FEA), this machine ensures strong structural rigidity and thermal stability, meeting the demands of long-term, heavy-duty machining, while guaranteeing both precision and durability.
The CNC turning machine is equipped with an advanced direct-drive electric spindle with a maximum speed of 2500 rpm and 18.5 kW of spindle power, coupled with a magnetic ring incremental encoder, enabling high-precision machining. The spindle cooling system effectively suppresses thermal deformation, maintaining a constant temperature throughout the machining process, and ensuring surface quality and dimensional stability.
The powered turret utilizes a BMT65-12T interface, supporting high-rigidity heavy-duty machining processes and enabling flexible switching between multiple processes. This CNC machine features a 120mm Y-axis travel, supporting complex operations such as eccentric milling, drilling, and tapping. Equipped with a high-torque powered turret and a servo-driven C-axis, it enables collaborative machining of diverse processes.
The dual-spindle design, with a 19kW sub-spindle and Ø86 through-hole design, enables precise clamping and back-end machining of long workpieces, significantly improving production efficiency and processing flexibility.
The latest version of the FANUC CNC system, integrated with the new iHMI user-friendly interface, offers powerful functionality and excellent scalability. The system incorporates intelligent preventive maintenance features, effectively avoiding unplanned machine downtime, increasing machine utilization, and ensuring efficient and stable production line operation.
The CNC turning and milling machine is widely used in the aerospace, automotive, hydraulic equipment, and heavy machinery industries, suitable for high-precision, high-efficiency machining of a variety of materials, including cast iron, steel, and non-ferrous metals. Its modular design ensures the machine’s multifunctional integration and ease of maintenance.

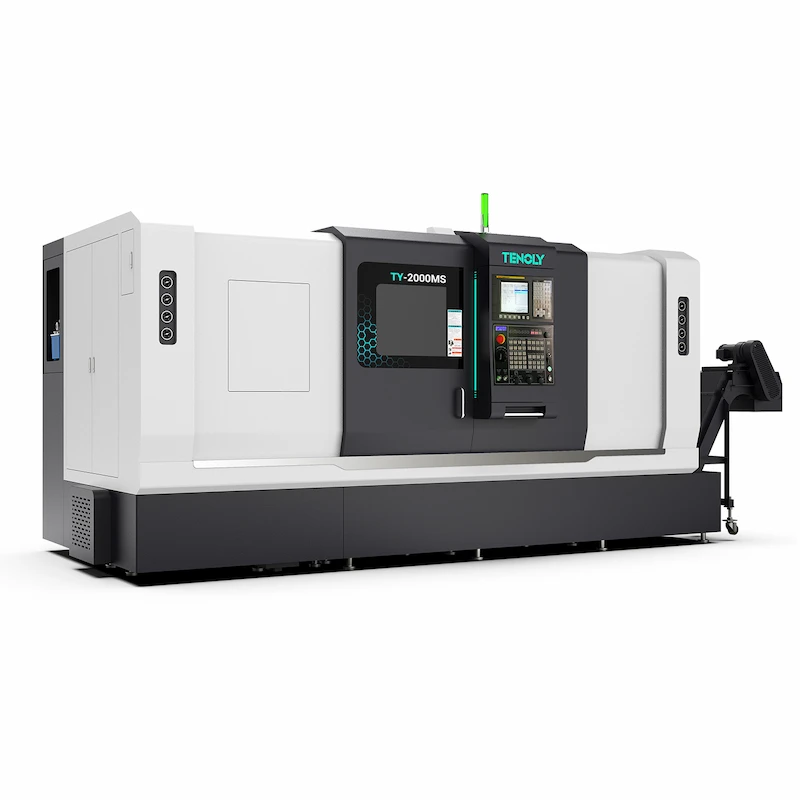

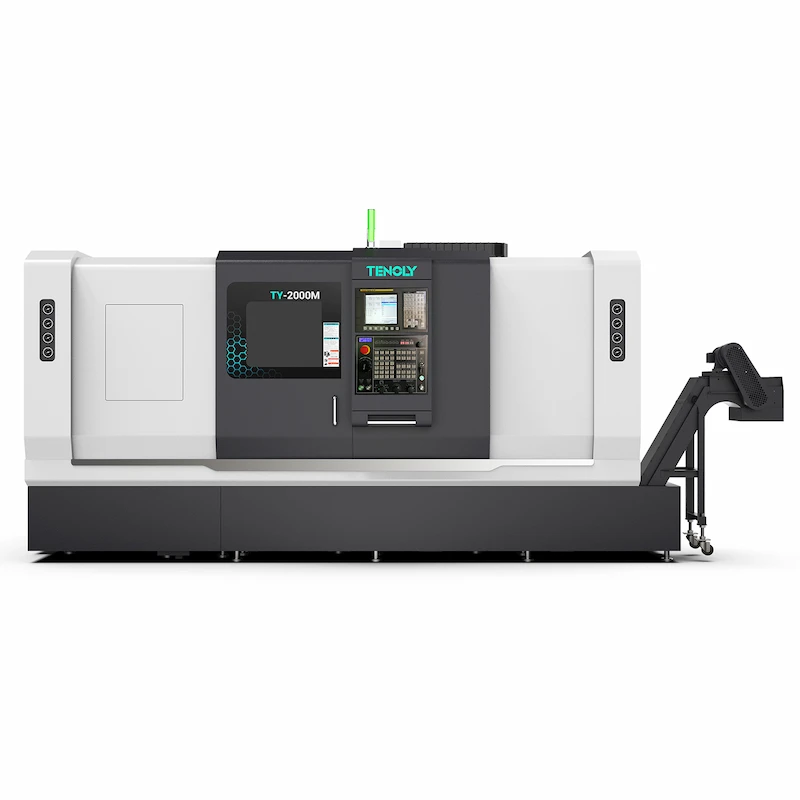

| ITEM | NAME | UNIT | TY2000M | TY2000MS |
| Travel | Max. bed rotation dia. | mm | Φ690 | Φ690 |
| Max. machining dia. | mm | Φ530 | Φ530 | |
| Max. rotating dia. on the tool rest | mm | Φ350 | Φ350 | |
| Max. machining length | mm | 1960 | 2030 | |
| Distance between two centres | mm | 2100 | 2030 | |
| Spindle Cylinders Chucks | Spindle nose | ASA | A2-8 | A2-8 |
| Hydraulic cylinder/chuck | inch | 10″ | 10″ | |
| Spindle through-hole dia. | mm | Φ86 | Φ86 | |
| Max. bar through-hole dia. | mm | Φ76 | Φ76 | |
| Max. spindle speed | rpm | 2500 | 2500 | |
| Spindle motor power | kw | 17 | 17 | |
| Spindle motor torque | Nm | 180/400 | 180/400 | |
| Sub-Spindle Cylinders Chucks | Sub-spindle nose | ASA | – | A2-6 |
| Sub-spindle hydraulic cylinder/collet | inch | – | 8″ | |
| Sub-spindle through-hole dia. | mm | – | Φ66 | |
| Max. sub-spindle bar through-hole dia. | mm | – | Φ52 | |
| Sub-spindle max. speed | rpm | – | 4300 | |
| Sub-spindle motor power | kw | – | 19 | |
| X/Z/Y/S Axis Feed Parameter | X-axis motor power | kw | 3 | 3 |
| Y-axis motor power | kw | – | – | |
| Z-axis motor power | kw | 3 | 3 | |
| S-axis motor power | kw | – | 3 | |
| X-axis travel | mm | 313 | 300 | |
| Y-axis travel | mm | – | – | |
| Z-axis travel | mm | 2090 | 2090 | |
| X/Z axis linear guide type | spes | 45 Roller | 45 Roller | |
| S-axis travel | mm | – | 2030 | |
| X axis rapid traverse | mm/min | 20 | 20 | |
| Z axis rapid traverse | mm/min | 20 | 20 | |
| Y-axis rapid traverse | mm/min | – | – | |
| S-axis rapid traverse | mm/min | – | 20 | |
| Servo Drive Turret Parameters | Power turret type | / | Servo turret | Servo turret |
| Tool station | / | BMT65-12T | BMT65-12T | |
| M-axis motor power | kw | 7.5 | 7.5 | |
| M-axis motor torque | Nm | 47.8 | 47.8 | |
| Max. speed of power head | rpm | 6000 | 6000 | |
| OD tool holder specification | mm | 25*25 | 25*25 | |
| ID tool holder specification | mm | Φ50 | Φ50 | |
| Adjacent tool change time | sec | 0.2 | 0.2 | |
| X-axis Positioning Accuracy | 0.008 | 0.008 | ||
| Z-axis Positioning Accuracy | 0.02 | 0.02 | ||
| X-axis Repeatability | / | 0.005 | 0.005 | |
| Z-axis Repeatability | / | 0.008 | 0.008 | |
| Tailstock Parameters | Tailstock | / | Hydraulic Programmable Tailstock | – |
| Max. tailstock travel | mm | 2080 | – | |
| Sleeve dia. | mm | Φ100 | – | |
| Sleeve Stroke | mm | 100 | – | |
| Sleeve Taper | / | MT#5 | – | |
| External Dimensions | Overall dimensions | m | 5000*2150*2160 | 5000*2150*2160 |
| Machine weight approx. | kg | 8900 | 9000 | |
| Other | Cutting fluid tank volume | L | 410 | 410 |
| Cooling water pump power | kw | 0.75 | 0.75 | |
| Hydraulic unit box volume | L | 50 | 50 | |
| Hydraulic oil pump motor power | kw | 1.5 | 1.5 | |
| Lubricating oil tank volume | L | 2 | 2 | |
| Automatic lubrication pump motor power | w | 50 | 50 |
The Eagle 2000 milling machine is designed for efficient and precise machining of large, complex parts, offering superior performance and stable machining capabilities. Supporting a maximum machining length of 2030 mm, it features a highly rigid HT300 cast iron one-piece bed with a 30-degree stepped flat rail structure. Optimized through Finite Element Analysis (FEA), this machine ensures strong structural rigidity and thermal stability, meeting the demands of long-term, heavy-duty machining, while guaranteeing both precision and durability.
The CNC turning machine is equipped with an advanced direct-drive electric spindle with a maximum speed of 2500 rpm and 18.5 kW of spindle power, coupled with a magnetic ring incremental encoder, enabling high-precision machining. The spindle cooling system effectively suppresses thermal deformation, maintaining a constant temperature throughout the machining process, and ensuring surface quality and dimensional stability.
The powered turret utilizes a BMT65-12T interface, supporting high-rigidity heavy-duty machining processes and enabling flexible switching between multiple processes. This CNC machine features a 120mm Y-axis travel, supporting complex operations such as eccentric milling, drilling, and tapping. Equipped with a high-torque powered turret and a servo-driven C-axis, it enables collaborative machining of diverse processes.
The dual-spindle design, with a 19kW sub-spindle and Ø86 through-hole design, enables precise clamping and back-end machining of long workpieces, significantly improving production efficiency and processing flexibility.
The latest version of the FANUC CNC system, integrated with the new iHMI user-friendly interface, offers powerful functionality and excellent scalability. The system incorporates intelligent preventive maintenance features, effectively avoiding unplanned machine downtime, increasing machine utilization, and ensuring efficient and stable production line operation.
The CNC turning and milling machine is widely used in the aerospace, automotive, hydraulic equipment, and heavy machinery industries, suitable for high-precision, high-efficiency machining of a variety of materials, including cast iron, steel, and non-ferrous metals. Its modular design ensures the machine’s multifunctional integration and ease of maintenance.

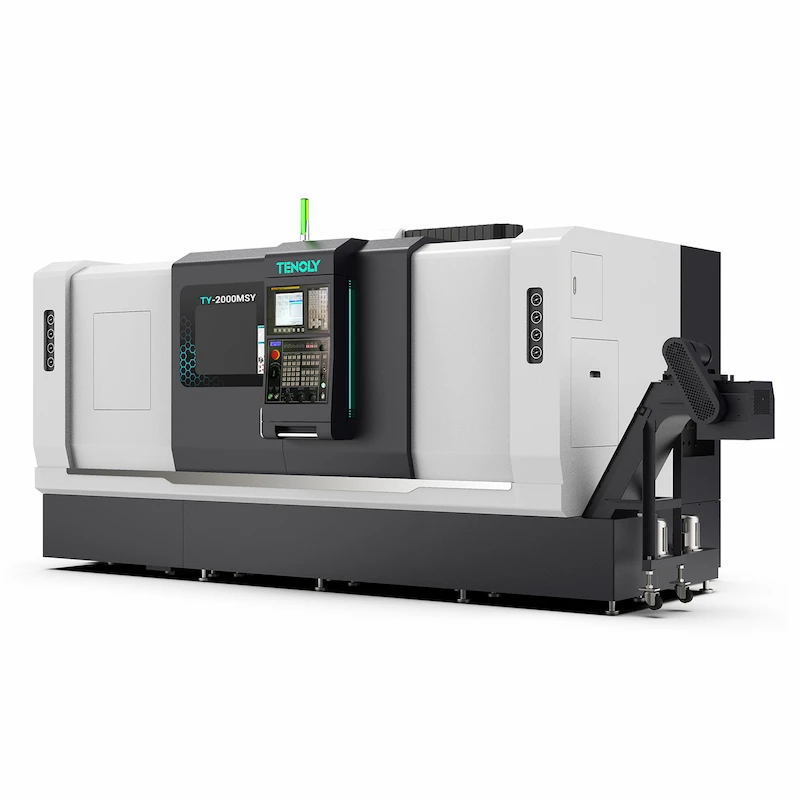

| ITEM | NAME | UNIT | TY2000MY | TY2000MSY |
| Travel | Max. bed rotation dia. | mm | Φ800 | Φ800 |
| Max. machining dia. | mm | Φ450 | Φ400 | |
| Max. rotating dia. on the tool rest | mm | Φ450 | Φ450 | |
| Max. machining length | mm | 1920 | 2030 | |
| Distance between two centres | mm | 2100 | 2030 | |
| Spindle Cylinders Chucks | Spindle nose | ASA | A2-8 | A2-8 |
| Hydraulic cylinder/chuck | inch | 10″ | 10″ | |
| Spindle through-hole dia. | mm | Φ86 | Φ86 | |
| Max. bar through-hole dia. | mm | Φ76 | Φ76 | |
| Max. spindle speed | rpm | 2500 | 2500 | |
| Spindle motor power | kw | 17 | 17 | |
| Spindle motor torque | Nm | 180/400 | 180/400 | |
| Sub-Spindle Cylinders Chucks | Sub-spindle nose | ASA | – | A2-6 |
| Sub-spindle hydraulic cylinder/collet | inch | – | 8″ | |
| Sub-spindle through-hole dia. | mm | – | Φ66 | |
| Max. sub-spindle bar through-hole dia. | mm | – | Φ52 | |
| Sub-spindle max. speed | rpm | – | 4300 | |
| Sub-spindle motor power | kw | – | 19 | |
| X/Z/Y/S Axis Feed Parameter | X-axis motor power | kw | 3 | 3 |
| Y-axis motor power | kw | 1.8 | 1.8 | |
| Z-axis motor power | kw | 3 | 3 | |
| S-axis motor power | kw | – | 3 | |
| X-axis travel | mm | 260 | 235 | |
| Y-axis travel | mm | 120(±60) | 120(±60) | |
| Z-axis travel | mm | 2050 | 1960 | |
| X/Z axis linear guide type | spes | 45 Roller | 45 Roller | |
| S-axis travel | mm | – | 2030 | |
| X axis rapid traverse | mm/min | 20 | 20 | |
| Z axis rapid traverse | mm/min | 20 | 20 | |
| Y-axis rapid traverse | mm/min | 8 | 8 | |
| S-axis rapid traverse | mm/min | – | 20 | |
| Servo Drive Turret Parameters | Power turret type | / | Servo turret | Servo turret |
| Tool station | / | BMT65MY-12T | BMT65MY-12T | |
| M-axis motor power | kw | 7.5 | 7.5 | |
| M-axis motor torque | Nm | 47.8 | 47.8 | |
| Max. speed of power head | rpm | 5000 | 6000 | |
| OD tool holder specification | mm | 25*25 | 25*25 | |
| ID tool holder specification | mm | Φ50 | Φ50 | |
| Adjacent tool change time | sec | 0.2 | 0.2 | |
| X-axis Positioning Accuracy | 0.008 | 0.008 | ||
| Z-axis Positioning Accuracy | 0.02 | 0.02 | ||
| X-axis Repeatability | / | 0.005 | 0.005 | |
| Z-axis Repeatability | / | 0.008 | 0.008 | |
| Tailstock Parameters | Tailstock | / | Hydraulic Programmable Tailstock | – |
| Max. tailstock travel | mm | 2080 | – | |
| Sleeve dia. | mm | Φ100 | – | |
| Sleeve Stroke | mm | 100 | – | |
| Sleeve Taper | / | MT#5 | – | |
| External Dimensions | Overall dimensions | m | 5000*2150*2160 | 5000*2150*2160 |
| Machine weight approx. | kg | 9000 | 9100 | |
| Other | Cutting fluid tank volume | L | 410 | 410 |
| Cooling water pump power | kw | 0.75 | 0.75 | |
| Hydraulic unit box volume | L | 50 | 50 | |
| Hydraulic oil pump motor power | kw | 1.5 | 1.5 | |
| Lubricating oil tank volume | L | 2 | 2 | |
| Automatic lubrication pump motor power | w | 50 | 50 |
The Eagle 2000 milling machine is designed for efficient and precise machining of large, complex parts, offering superior performance and stable machining capabilities. Supporting a maximum machining length of 2030 mm, it features a highly rigid HT300 cast iron one-piece bed with a 30-degree stepped flat rail structure. Optimized through Finite Element Analysis (FEA), this machine ensures strong structural rigidity and thermal stability, meeting the demands of long-term, heavy-duty machining, while guaranteeing both precision and durability.
The CNC turning machine is equipped with an advanced direct-drive electric spindle with a maximum speed of 2500 rpm and 18.5 kW of spindle power, coupled with a magnetic ring incremental encoder, enabling high-precision machining. The spindle cooling system effectively suppresses thermal deformation, maintaining a constant temperature throughout the machining process, and ensuring surface quality and dimensional stability.
The powered turret utilizes a BMT65-12T interface, supporting high-rigidity heavy-duty machining processes and enabling flexible switching between multiple processes. This CNC machine features a 120mm Y-axis travel, supporting complex operations such as eccentric milling, drilling, and tapping. Equipped with a high-torque powered turret and a servo-driven C-axis, it enables collaborative machining of diverse processes.
The dual-spindle design, with a 19kW sub-spindle and Ø86 through-hole design, enables precise clamping and back-end machining of long workpieces, significantly improving production efficiency and processing flexibility.
The latest version of the FANUC CNC system, integrated with the new iHMI user-friendly interface, offers powerful functionality and excellent scalability. The system incorporates intelligent preventive maintenance features, effectively avoiding unplanned machine downtime, increasing machine utilization, and ensuring efficient and stable production line operation.
The CNC turning and milling machine is widely used in the aerospace, automotive, hydraulic equipment, and heavy machinery industries, suitable for high-precision, high-efficiency machining of a variety of materials, including cast iron, steel, and non-ferrous metals. Its modular design ensures the machine’s multifunctional integration and ease of maintenance.
