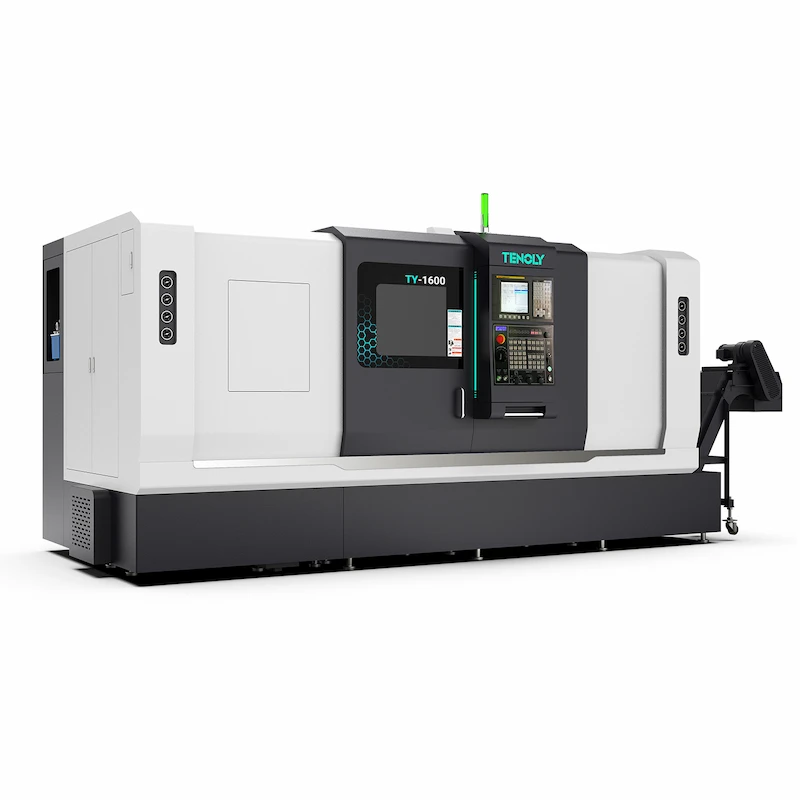

| ITEM | NAME | UNIT | TY1600 |
| Travel | Max. bed rotation dia. | mm | Φ690 |
| Max. machining dia. | mm | Φ640 | |
| Max. rotating dia. on the tool rest | mm | Φ350 | |
| Max. machining length | mm | 1500 | |
| Distance between two centres | mm | 1497 | |
| Spindle Cylinders Chucks | Spindle nose | ASA | A2-11 |
| Hydraulic cylinder/chuck | inch | 15″/12″ | |
| Spindle through-hole dia. | mm | Φ117 | |
| Max. bar through-hole dia. | mm | Φ102 | |
| Max. spindle speed | rpm | 2500 | |
| Spindle motor power | kw | 15/18.5 | |
| Spindle motor torque | Nm | 440-544 | |
| Sub-Spindle Cylinders Chucks | Sub-spindle nose | ASA | – |
| Sub-spindle hydraulic cylinder/collet | inch | – | |
| Sub-spindle through-hole dia. | mm | – | |
| Max. sub-spindle bar through-hole dia. | mm | – | |
| Sub-spindle max. speed | rpm | – | |
| Sub-spindle motor power | kw | – | |
| X/Z/Y/S Axis Feed Parameter | X-axis motor power | kw | 3 |
| Y-axis motor power | kw | – | |
| Z-axis motor power | kw | 3 | |
| S-axis motor power | kw | – | |
| X-axis travel | mm | 335 | |
| Y-axis travel | mm | – | |
| Z-axis travel | mm | 1570 | |
| X/Z axis linear guide type | spes | 45 Roller | |
| S-axis travel | mm | – | |
| X axis rapid traverse | mm/min | 20 | |
| Z axis rapid traverse | mm/min | 20 | |
| Y-axis rapid traverse | mm/min | – | |
| S-axis rapid traverse | mm/min | – | |
| Servo Drive Turret Parameters | Power turret type | / | Servo turret |
| Tool station | / | 12T | |
| M-axis motor power | kw | – | |
| M-axis motor torque | Nm | – | |
| Max. speed of power head | rpm | – | |
| OD tool holder specification | mm | 32*32 | |
| ID tool holder specification | mm | Φ50 | |
| Adjacent tool change time | sec | 0.15 | |
| X-axis Positioning Accuracy | 0.008 | ||
| Z-axis Positioning Accuracy | 0.02 | ||
| X-axis Repeatability | / | 0.005 | |
| Z-axis Repeatability | / | 0.008 | |
| Tailstock Parameters | Tailstock | / | Hydraulic Programmable Tailstock |
| Max. tailstock travel | mm | 1470 | |
| Sleeve dia. | mm | Φ100 | |
| Sleeve Stroke | mm | 100 | |
| Sleeve Taper | / | MT#5 | |
| External Dimensions | Overall dimensions | m | 4300*2150*2160 |
| Machine weight approx. | kg | 8200 | |
| Other | Cutting fluid tank volume | L | 380 |
| Cooling water pump power | kw | 0.75 | |
| Hydraulic unit box volume | L | 50 | |
| Hydraulic oil pump motor power | kw | 1.5 | |
| Lubricating oil tank volume | L | 2 | |
| Automatic lubrication pump motor power | w | 50 |
The CNC turning and milling machine provides an ideal, efficient machining solution for factories manufacturing large, complex parts. The Eagle 1600 model boasts a machining length of up to 1500 mm and a powerful powertrain, meeting the production needs of a wide range of large parts. Whether machining in batches or small batches, it ensures precise and stable machining.
The CNC machine features a high-strength HT300 cast iron, one-piece bed with a 30-degree stepped flat rail structure. Optimized through advanced finite element analysis, it achieves exceptional rigidity and turning stability. Whether handling heavy turning or high-speed machining, the machine maintains exceptional machining accuracy and long-term stability, significantly improving tool life and machining quality.
The power center is a direct-drive electric spindle, combining high speed and high torque, with a maximum speed of 2500 rpm and a stable spindle output of 18.5 kw. An advanced cooling system maintains a constant spindle temperature, effectively reducing machining errors caused by thermal deformation and ensuring smooth workpiece surfaces and precise dimensions.
The CNC lathe’s extensive machining capabilities are enabled by an intelligent control system. Equipped with an upgraded FANUC CNC system and the intuitive, easy-to-use iHMI (Human Machine Interface), the CNC turning machine not only simplifies operations but also features intelligent preventive maintenance capabilities, significantly reducing the risk of unplanned downtime. The servo-driven 120mm travel Y-axis and rotary C-axis enable seamless switching between complex operations such as eccentric milling, drilling, and tapping, significantly shortening cycle times and improving production efficiency.

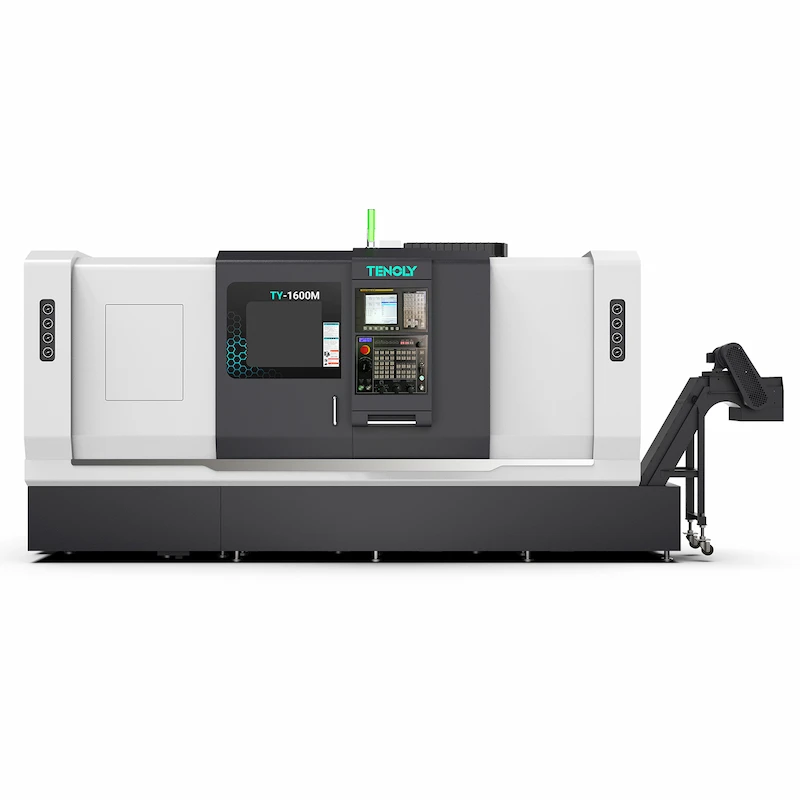

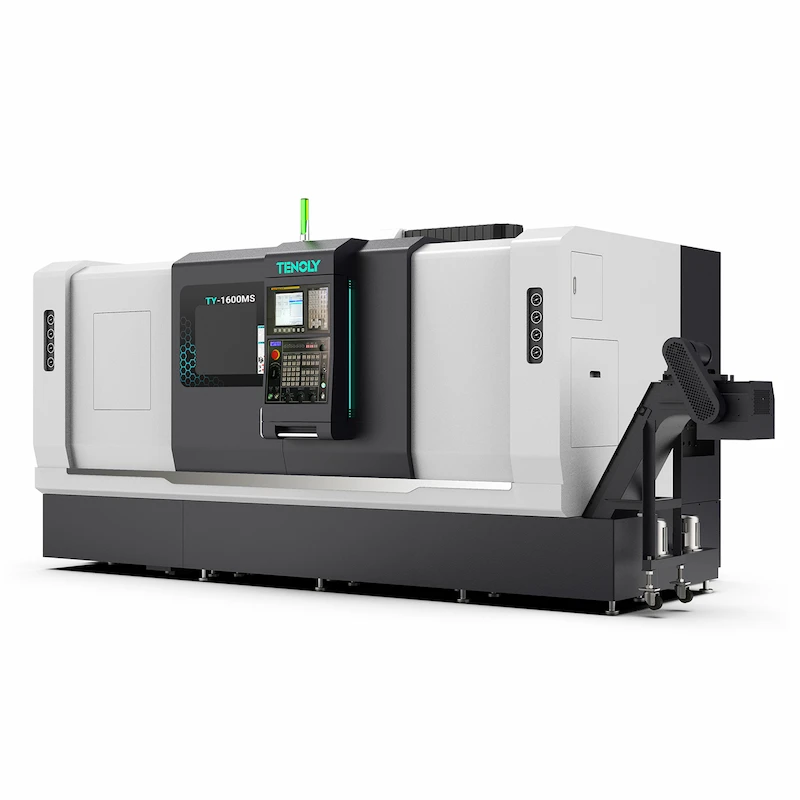

| ITEM | NAME | UNIT | TY1600M | TY1600MS |
| Travel | Max. bed rotation dia. | mm | Φ690 | Φ690 |
| Max. machining dia. | mm | Φ530 | Φ530 | |
| Max. rotating dia. on the tool rest | mm | Φ350 | Φ350 | |
| Max. machining length | mm | 1500 | 1430 | |
| Distance between two centres | mm | 1552 | 1430 | |
| Spindle Cylinders Chucks | Spindle nose | ASA | A2-8 | A2-8 |
| Hydraulic cylinder/chuck | inch | 10″ | 10″ | |
| Spindle through-hole dia. | mm | Φ86 | Φ86 | |
| Max. bar through-hole dia. | mm | Φ76 | Φ76 | |
| Max. spindle speed | rpm | 2500 | 2500 | |
| Spindle motor power | kw | 17 | 17 | |
| Spindle motor torque | Nm | 180/400 | 180/400 | |
| Sub-Spindle Cylinders Chucks | Sub-spindle nose | ASA | – | A2-6 |
| Sub-spindle hydraulic cylinder/collet | inch | – | 8″ | |
| Sub-spindle through-hole dia. | mm | – | Φ66 | |
| Max. sub-spindle bar through-hole dia. | mm | – | Φ52 | |
| Sub-spindle max. speed | rpm | – | 4300 | |
| Sub-spindle motor power | kw | – | 19 | |
| X/Z/Y/S Axis Feed Parameter | X-axis motor power | kw | 3 | 3 |
| Y-axis motor power | kw | – | – | |
| Z-axis motor power | kw | 3 | 3 | |
| S-axis motor power | kw | – | 3 | |
| X-axis travel | mm | 313 | 313 | |
| Y-axis travel | mm | – | – | |
| Z-axis travel | mm | 1620 | 1620 | |
| X/Z axis linear guide type | spes | 45 Roller | 45 Roller | |
| S-axis travel | mm | – | 1280 | |
| X axis rapid traverse | mm/min | 20 | 20 | |
| Z axis rapid traverse | mm/min | 20 | 20 | |
| Y-axis rapid traverse | mm/min | – | – | |
| S-axis rapid traverse | mm/min | – | 20 | |
| Servo Drive Turret Parameters | Power turret type | / | Servo turret | Servo turret |
| Tool station | / | BMT65-12T | BMT65-12T | |
| M-axis motor power | kw | 7.5 | 7.5 | |
| M-axis motor torque | Nm | 47.8 | 47.8 | |
| Max. speed of power head | rpm | 6000 | 6000 | |
| OD tool holder specification | mm | 25*25 | 25*25 | |
| ID tool holder specification | mm | Φ50 | Φ50 | |
| Adjacent tool change time | sec | 0.15 | 0.2 | |
| X-axis Positioning Accuracy | 0.008 | 0.008 | ||
| Z-axis Positioning Accuracy | 0.02 | 0.02 | ||
| X-axis Repeatability | / | 0.005 | 0.005 | |
| Z-axis Repeatability | / | 0.008 | 0.008 | |
| Tailstock Parameters | Tailstock | / | Hydraulic Programmable Tailstock | – |
| Max. tailstock travel | mm | 1520 | – | |
| Sleeve dia. | mm | Φ100 | – | |
| Sleeve Stroke | mm | 100 | – | |
| Sleeve Taper | / | MT#5 | – | |
| External Dimensions | Overall dimensions | m | 4300*2150*2160 | 4300*2150*2160 |
| Machine weight approx. | kg | 8300 | 8400 | |
| Other | Cutting fluid tank volume | L | 350 | 380 |
| Cooling water pump power | kw | 0.75 | 0.75 | |
| Hydraulic unit box volume | L | 50 | 50 | |
| Hydraulic oil pump motor power | kw | 1.5 | 1.5 | |
| Lubricating oil tank volume | L | 2 | 2 | |
| Automatic lubrication pump motor power | w | 50 | 50 |
The CNC turning and milling machine provides an ideal, efficient machining solution for factories manufacturing large, complex parts. The Eagle 1600 model boasts a machining length of up to 1500 mm and a powerful powertrain, meeting the production needs of a wide range of large parts. Whether machining in batches or small batches, it ensures precise and stable machining.
The CNC machine features a high-strength HT300 cast iron, one-piece bed with a 30-degree stepped flat rail structure. Optimized through advanced finite element analysis, it achieves exceptional rigidity and turning stability. Whether handling heavy turning or high-speed machining, the machine maintains exceptional machining accuracy and long-term stability, significantly improving tool life and machining quality.
The power center is a direct-drive electric spindle, combining high speed and high torque, with a maximum speed of 2500 rpm and a stable spindle output of 18.5 kw. An advanced cooling system maintains a constant spindle temperature, effectively reducing machining errors caused by thermal deformation and ensuring smooth workpiece surfaces and precise dimensions.
The CNC lathe’s extensive machining capabilities are enabled by an intelligent control system. Equipped with an upgraded FANUC CNC system and the intuitive, easy-to-use iHMI (Human Machine Interface), the CNC turning machine not only simplifies operations but also features intelligent preventive maintenance capabilities, significantly reducing the risk of unplanned downtime. The servo-driven 120mm travel Y-axis and rotary C-axis enable seamless switching between complex operations such as eccentric milling, drilling, and tapping, significantly shortening cycle times and improving production efficiency.
| ITEM | NAME | UNIT | TY1600MY | TY1600MSY |
| Travel | Max. bed rotation dia. | mm | Φ800 | Φ800 |
| Max. machining dia. | mm | Φ450 | Φ400 | |
| Max. rotating dia. on the tool rest | mm | Φ450 | Φ450 | |
| Max. machining length | mm | 1450 | 1430 | |
| Distance between two centres | mm | 1552 | 1430 | |
| Spindle Cylinders Chucks | Spindle nose | ASA | A2-8 | A2-8 |
| Hydraulic cylinder/chuck | inch | 10″ | 10″ | |
| Spindle through-hole dia. | mm | Φ86 | Φ86 | |
| Max. bar through-hole dia. | mm | Φ76 | Φ76 | |
| Max. spindle speed | rpm | 2500 | 2500 | |
| Spindle motor power | kw | 17 | 17 | |
| Spindle motor torque | Nm | 180/400 | 180/400 | |
| Sub-Spindle Cylinders Chucks | Sub-spindle nose | ASA | – | A2-6 |
| Sub-spindle hydraulic cylinder/collet | inch | – | 8″ | |
| Sub-spindle through-hole dia. | mm | – | Φ66 | |
| Max. sub-spindle bar through-hole dia. | mm | – | Φ52 | |
| Sub-spindle max. speed | rpm | – | 4300 | |
| Sub-spindle motor power | kw | – | 19 | |
| X/Z/Y/S Axis Feed Parameter | X-axis motor power | kw | 3 | 3 |
| Y-axis motor power | kw | 1.8 | 1.8 | |
| Z-axis motor power | kw | 3 | 3 | |
| S-axis motor power | kw | – | 3 | |
| X-axis travel | mm | 260 | 235 | |
| Y-axis travel | mm | 120(±60) | 120(±60) | |
| Z-axis travel | mm | 1580 | 1500 | |
| X/Z axis linear guide type | spes | 45 Roller | 45 Roller | |
| S-axis travel | mm | – | 1280 | |
| X axis rapid traverse | mm/min | 20 | 20 | |
| Z axis rapid traverse | mm/min | 20 | 20 | |
| Y-axis rapid traverse | mm/min | 8 | 8 | |
| S-axis rapid traverse | mm/min | – | 20 | |
| Servo Drive Turret Parameters | Power turret type | / | Servo turret | Servo turret |
| Tool station | / | BMT65MY-12T | BMT65MY-12T | |
| M-axis motor power | kw | 7.5 | 7.5 | |
| M-axis motor torque | Nm | 47.8 | 47.8 | |
| Max. speed of power head | rpm | 6000 | 6000 | |
| OD tool holder specification | mm | 25*25 | 25*25 | |
| ID tool holder specification | mm | Φ50 | Φ50 | |
| Adjacent tool change time | sec | 0.2 | 0.2 | |
| X-axis Positioning Accuracy | 0.008 | 0.008 | ||
| Z-axis Positioning Accuracy | 0.02 | 0.02 | ||
| X-axis Repeatability | / | 0.005 | 0.005 | |
| Z-axis Repeatability | / | 0.008 | 0.008 | |
| Tailstock Parameters | Tailstock | / | Hydraulic Programmable Tailstock | – |
| Max. tailstock travel | mm | 1440 | – | |
| Sleeve dia. | mm | Φ100 | – | |
| Sleeve Stroke | mm | 100 | – | |
| Sleeve Taper | / | MT#5 | – | |
| External Dimensions | Overall dimensions | m | 4300*2150*2160 | 4300*2110*2100 |
| Machine weight approx. | kg | 8300 | 8500 | |
| Other | Cutting fluid tank volume | L | 380 | 380 |
| Cooling water pump power | kw | 0.75 | 0.75 | |
| Hydraulic unit box volume | L | 50 | 50 | |
| Hydraulic oil pump motor power | kw | 1.5 | 1.5 | |
| Lubricating oil tank volume | L | 2 | 2 | |
| Automatic lubrication pump motor power | w | 50 | 50 |
The CNC turning and milling machine provides an ideal, efficient machining solution for factories manufacturing large, complex parts. The Eagle 1600 model boasts a machining length of up to 1500 mm and a powerful powertrain, meeting the production needs of a wide range of large parts. Whether machining in batches or small batches, it ensures precise and stable machining.
The CNC machine features a high-strength HT300 cast iron, one-piece bed with a 30-degree stepped flat rail structure. Optimized through advanced finite element analysis, it achieves exceptional rigidity and turning stability. Whether handling heavy turning or high-speed machining, the machine maintains exceptional machining accuracy and long-term stability, significantly improving tool life and machining quality.
The power center is a direct-drive electric spindle, combining high speed and high torque, with a maximum speed of 2500 rpm and a stable spindle output of 18.5 kw. An advanced cooling system maintains a constant spindle temperature, effectively reducing machining errors caused by thermal deformation and ensuring smooth workpiece surfaces and precise dimensions.
The CNC lathe’s extensive machining capabilities are enabled by an intelligent control system. Equipped with an upgraded FANUC CNC system and the intuitive, easy-to-use iHMI (Human Machine Interface), the CNC turning machine not only simplifies operations but also features intelligent preventive maintenance capabilities, significantly reducing the risk of unplanned downtime. The servo-driven 120mm travel Y-axis and rotary C-axis enable seamless switching between complex operations such as eccentric milling, drilling, and tapping, significantly shortening cycle times and improving production efficiency.
