1200 Series

The Eagle 1200 milling machine, with its advanced design and outstanding performance, is specifically designed to meet the demands of efficient machining of medium-to-large complex parts. It supports machining lengths up to 1100 mm and is equipped with a direct-drive 18.5 kW high-power spindle with a maximum speed of 3200 rpm, ensuring stable and reliable operation even at high speeds. This significantly reduces vibration and thermal deformation, ensuring machining accuracy and surface finish.

The new integrated positive Y-axis structure and 120 mm Y-axis travel (±60° from centerline) enable the CNC machine to easily perform diverse operations such as off-center milling, drilling, and tapping, meeting the multi-step machining requirements of complex parts. The powered turret utilizes a BMT65-12T interface, providing strong machining rigidity and flexibility, significantly improving tool change speed and machining efficiency. The machine tool utilizes a high-strength HT300 cast iron, one-piece bed with a 30-degree stepped flat rail structure. Optimized using advanced finite element analysis (FEA), this significantly improves CNC machine rigidity and thermal stability, ensuring high-precision, reliable, and durable machining over the long term. The four-slide design evenly distributes the load, reducing guideway wear and extending machine life.

Equipped with a cutting-edge FANUC CNC system, it integrates the latest iHMI interface for easy operation, rich customization features, and expandable memory, enabling intelligent machining management. The system incorporates preventive maintenance features, effectively minimizing downtime and ensuring continuous, efficient production line operation.

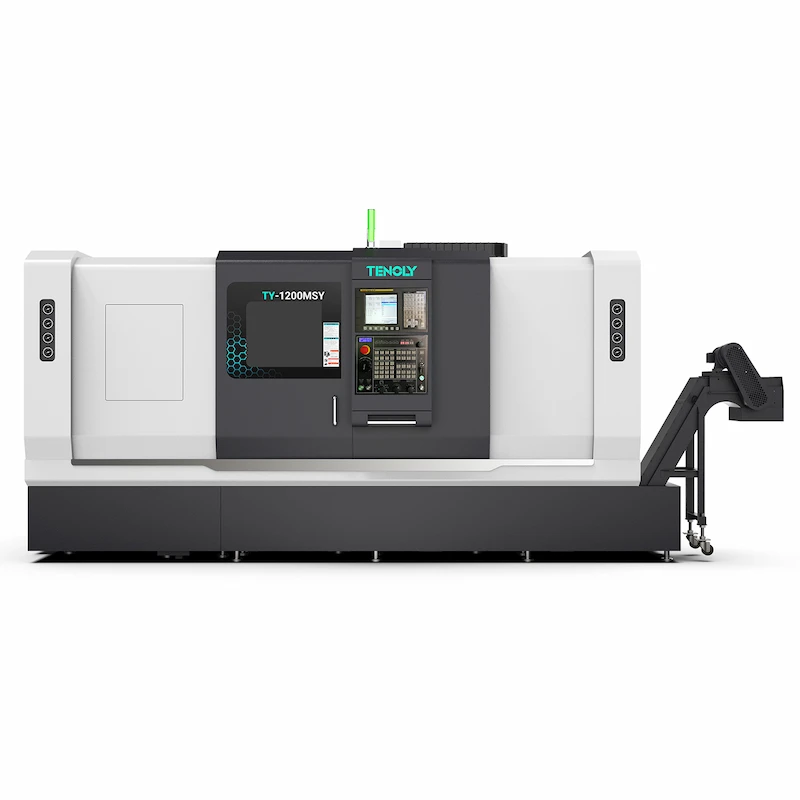

The dual-spindle synchronous machining design enhances machining efficiency. The sub-spindle boasts 19 kW of power and supports constant-speed synchronous control, enabling seamless integration of the main and sub-spindles. This significantly improves production speed, reduces manual intervention, and reduces errors, making it particularly suitable for mass production of highly complex parts. The Φ66 sub-spindle’s through-hole design supports machining long workpieces, enabling precise mid-section clamping and stable machining. Developed specifically for the automotive, agricultural machinery, motor, hydraulic, and bearing industries, the Eagle 1200 is suitable for a wide range of materials, including cast iron, steel, and nonferrous metals, meeting diverse demands for efficient cutting, heavy-duty machining, and high-precision surface treatment.
