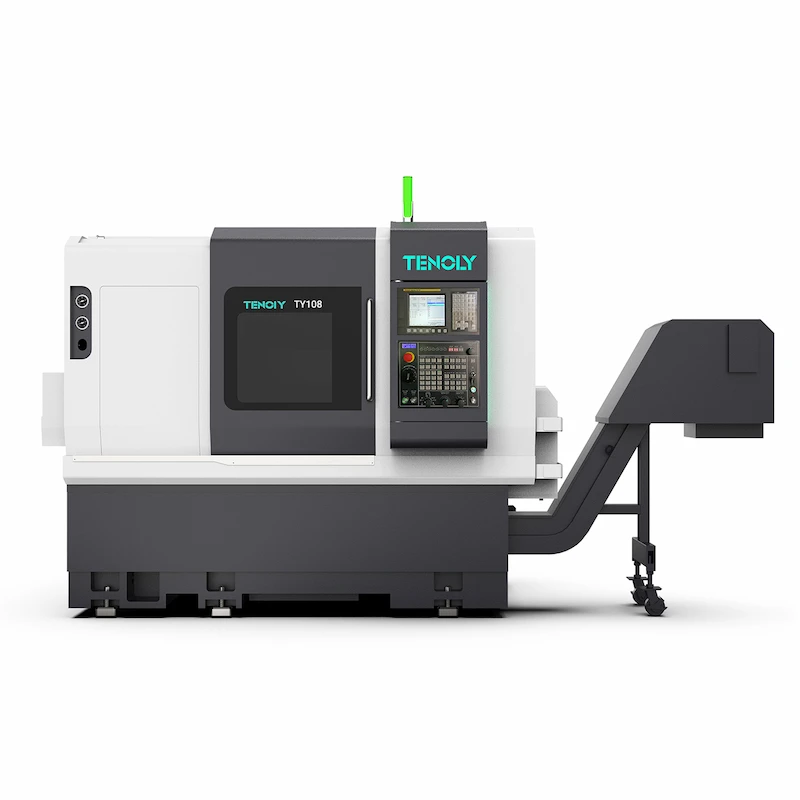

| ITEM | NAME | UNIT | TY108 |
| Travel | Max. bed rotating diameter | mm | Φ600 |
| Max. machining diameter | mm | Φ380 | |
| Max. rotating diameter on the turret | mm | Φ200 | |
| Max. machining length | mm | 370 | |
| Distance between two centres | mm | 450 | |
| Spindle Cylinders Chucks | Spindle nose | ASA | A2-6 |
| Hydraulic cylinder/chuck | inch | 8″ | |
| Spindle through-hole diameter | mm | Φ66 | |
| Max. bar through-hole diameter | mm | Φ52 | |
| Max. spindle speed | rpm | 4500/4300 | |
| Spindle motor power | kw | 11-15(19) | |
| Spindle motor torque | Nm | 73/165(90-200) | |
| X/Z/Y/S Axis Feed Parameter | X-axis motor power | kw | 1.8 |
| Y-axis motor power | kw | – | |
| Z-axis motor power | kw | 1.8 | |
| X-axis travel | mm | 200 | |
| Y-axis travel | mm | – | |
| Z-axis travel | mm | 420 | |
| X/Z axis rail specification | spec | 35 Roller | |
| Y-axis specification rail form | spec | – | |
| X-axis rapid traverse | mm/min | 30 | |
| Y-axis rapid traverse | mm/min | – | |
| Z-axis rapid traverse | mm/min | 30 | |
| Servo Drive Turret Parameters | Power turret type | / | Servo turret |
| Tool station | / | 12T | |
| M-axis motor power | kw | – | |
| M-axis motor torque | Nm | – | |
| Max. speed of power head | rpm | – | |
| OD tool holder size | mm | 25*25 | |
| ID tool holder size | mm | Φ40 | |
| Adjacent tool change time | sec | 0.15 | |
| Positioning accuracy | / | ±2″ | |
| Repeat positioning accuracy | / | ±1″ | |
| Tailstock Parameters | Tailstock | / | Hydraulic Programmable Tailstock |
| Max. tailstock travel | mm | 360 | |
| Sleeve diameter | mm | Φ80 | |
| Sleeve Stroke | mm | 100 | |
| Sleeve Taper | / | MT4# | |
| External Dimensions | Overall dimensions | m | 2400*2000*1900 |
| Machine weight approx. | kg | 3700 | |
| Other | Cutting fluid tank volume | L | 120 |
| Cooling water pump power | kw | 0.75 | |
| Hydraulic unit box volume | L | 40 | |
| Motor power of hydraulic oil pump | kw | 1.5 | |
| Lubricating oil tank volume | L | 2 | |
| Automatic lubrication pump motor power | W | 50 |
The TENOLY 108 series CNC turning and milling center offers an ideal solution to the efficiency and precision challenges of modern manufacturing. Whether it’s batch processing or complex parts, this machine can easily handle it.
The machine’s sturdy HT300 cast iron base ensures stability and reduces vibration during high-speed turning, which is crucial for improving machining quality. The unique BMT55 turret design not only increases tool change speed but also enhances machine rigidity, making continuous multi-pass machining more efficient and smoother. Equipped with a high-performance synchronous electric spindle and a cooling system, it ensures dimensional accuracy and surface finish during long-term machining.
In terms of safety, the CNC machine features comprehensive equipment protection and an alarm system. Tool life management monitors the production process, significantly reducing maintenance costs. Flexible spindle speed adjustment and reverse functions enable the machine to meet diverse process requirements and adapt to various machining environments.

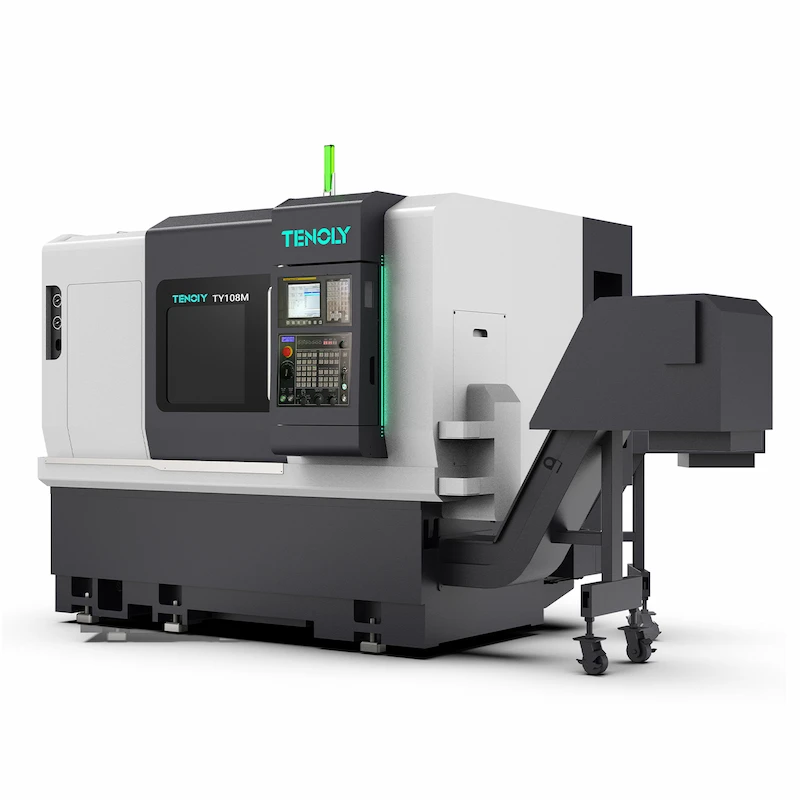

| ITEM | NAME | UNIT | TY108M |
| Travel | Max. bed rotating diameter | mm | Φ600 |
| Max. machining diameter | mm | Φ310 | |
| Max. rotating diameter on the turret | mm | Φ200 | |
| Max. machining length | mm | 320 | |
| Distance between two centres | mm | 450 | |
| Spindle Cylinders Chucks | Spindle nose | ASA | A2-6 |
| Hydraulic cylinder/chuck | inch | 8″ | |
| Spindle through-hole diameter | mm | Φ79/66 | |
| Max. bar through-hole diameter | mm | Φ65/52 | |
| Max. spindle speed | rpm | 4000/4300 | |
| Spindle motor power | kw | 19 | |
| Spindle motor torque | Nm | 90-200 | |
| X/Z/Y/S Axis Feed Parameter | X-axis motor power | kw | 1.8 |
| Y-axis motor power | kw | – | |
| Z-axis motor power | kw | 1.8 | |
| X-axis travel | mm | 200 | |
| Y-axis travel | mm | – | |
| Z-axis travel | mm | 400 | |
| X/Z axis rail specification | spec | 35 Roller | |
| Y-axis specification rail form | spec | – | |
| X-axis rapid traverse | mm/min | 30 | |
| Y-axis rapid traverse | mm/min | – | |
| Z-axis rapid traverse | mm/min | 30 | |
| Servo Drive Turret Parameters | Power turret type | / | BMT45 |
| Tool station | / | 12T | |
| M-axis motor power | kw | 5.5 | |
| M-axis motor torque | Nm | 35 | |
| Max. speed of power head | rpm | 6000 | |
| OD tool holder size | mm | 25*25 | |
| ID tool holder size | mm | Φ40 | |
| Adjacent tool change time | sec | 0.15 | |
| Positioning accuracy | / | ±2″ | |
| Repeat positioning accuracy | / | ±1″ | |
| Tailstock Parameters | Tailstock | / | Hydraulic Programmable Tailstock |
| Max. tailstock travel | mm | 360 | |
| Sleeve diameter | mm | Φ80 | |
| Sleeve Stroke | mm | 100 | |
| Sleeve Taper | / | MT4# | |
| External Dimensions | Overall dimensions | m | 2400*2000*1900 |
| Machine weight approx. | kg | 3800 | |
| Other | Cutting fluid tank volume | L | 120 |
| Cooling water pump power | kw | 0.75 | |
| Hydraulic unit box volume | L | 40 | |
| Motor power of hydraulic oil pump | kw | 1.5 | |
| Lubricating oil tank volume | L | 2 | |
| Automatic lubrication pump motor power | W | 50 |
The TENOLY 108 series CNC turning and milling center offers an ideal solution to the efficiency and precision challenges of modern manufacturing. Whether it’s batch processing or complex parts, this machine can easily handle it.
The machine’s sturdy HT300 cast iron base ensures stability and reduces vibration during high-speed turning, which is crucial for improving machining quality. The unique BMT55 turret design not only increases tool change speed but also enhances machine rigidity, making continuous multi-pass machining more efficient and smoother. Equipped with a high-performance synchronous electric spindle and a cooling system, it ensures dimensional accuracy and surface finish during long-term machining.
In terms of safety, the CNC machine features comprehensive equipment protection and an alarm system. Tool life management monitors the production process, significantly reducing maintenance costs. Flexible spindle speed adjustment and reverse functions enable the machine to meet diverse process requirements and adapt to various machining environments.

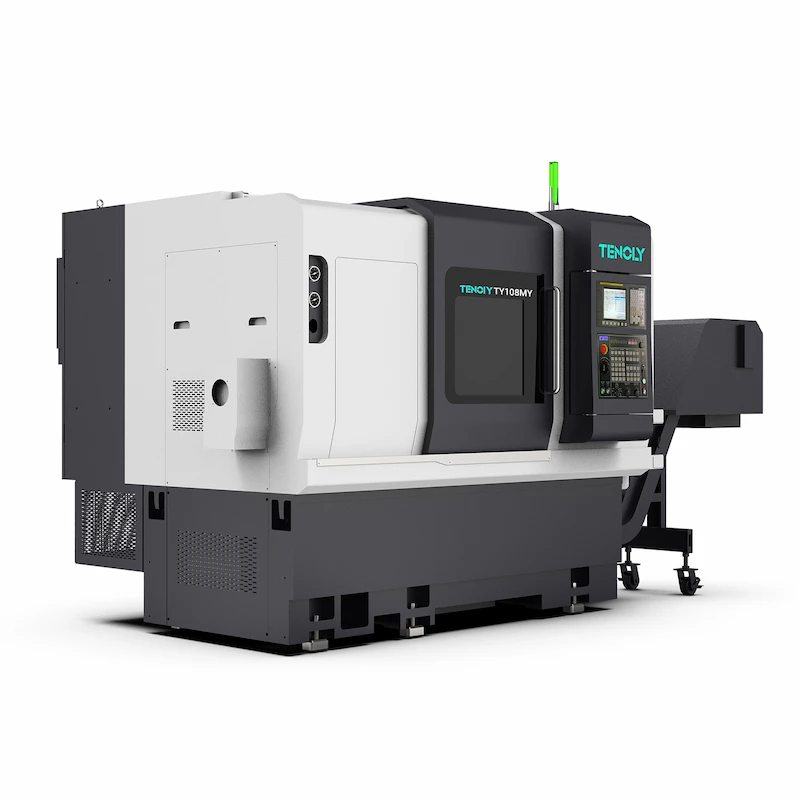

| ITEM | NAME | UNIT | TY108MY |
| Travel | Max. bed rotating diameter | mm | Φ660 |
| Max. machining diameter | mm | Φ330 | |
| Max. rotating diameter on the turret | mm | Φ350 | |
| Max. machining length | mm | 210 | |
| Distance between two centres | mm | 450 | |
| Spindle Cylinders Chucks | Spindle nose | ASA | A2-6 |
| Hydraulic cylinder/chuck | inch | 8″ | |
| Spindle through-hole diameter | mm | Φ79/66 | |
| Max. bar through-hole diameter | mm | Φ65/52 | |
| Max. spindle speed | rpm | 4000/4300 | |
| Spindle motor power | kw | 19 | |
| Spindle motor torque | Nm | 90-200 | |
| X/Z/Y/S Axis Feed Parameter | X-axis motor power | kw | 1.8 |
| Y-axis motor power | kw | 1.2 | |
| Z-axis motor power | kw | 1.8 | |
| X-axis travel | mm | 210 | |
| Y-axis travel | mm | 90±45 | |
| Z-axis travel | mm | 290 | |
| X/Z axis rail specification | spec | 35 Roller | |
| Y-axis specification rail form | spec | 25 Roller | |
| X-axis rapid traverse | mm/min | 24 | |
| Y-axis rapid traverse | mm/min | 8 | |
| Z-axis rapid traverse | mm/min | 24 | |
| Servo Drive Turret Parameters | Power turret type | / | BMT45 |
| Tool station | / | 12T | |
| M-axis motor power | kw | 5.5 | |
| M-axis motor torque | Nm | 35 | |
| Max. speed of power head | rpm | 6000 | |
| OD tool holder size | mm | 25*25 | |
| ID tool holder size | mm | Φ40 | |
| Adjacent tool change time | sec | 0.15 | |
| Positioning accuracy | / | ±2″ | |
| Repeat positioning accuracy | / | ±1″ | |
| Tailstock Parameters | Tailstock | / | Hydraulic Programmable Tailstock |
| Max. tailstock travel | mm | 360 | |
| Sleeve diameter | mm | Φ80 | |
| Sleeve Stroke | mm | 100 | |
| Sleeve Taper | / | MT4# | |
| External Dimensions | Overall dimensions | m | 2400*2000*1900 |
| Machine weight approx. | kg | 3800 | |
| Other | Cutting fluid tank volume | L | 120 |
| Cooling water pump power | kw | 0.75 | |
| Hydraulic unit box volume | L | 40 | |
| Motor power of hydraulic oil pump | kw | 1.5 | |
| Lubricating oil tank volume | L | 2 | |
| Automatic lubrication pump motor power | W | 50 |
The TENOLY 108 series CNC turning and milling center offers an ideal solution to the efficiency and precision challenges of modern manufacturing. Whether it’s batch processing or complex parts, this machine can easily handle it.
The machine’s sturdy HT300 cast iron base ensures stability and reduces vibration during high-speed turning, which is crucial for improving machining quality. The unique BMT55 turret design not only increases tool change speed but also enhances machine rigidity, making continuous multi-pass machining more efficient and smoother. Equipped with a high-performance synchronous electric spindle and a cooling system, it ensures dimensional accuracy and surface finish during long-term machining.
In terms of safety, the CNC machine features comprehensive equipment protection and an alarm system. Tool life management monitors the production process, significantly reducing maintenance costs. Flexible spindle speed adjustment and reverse functions enable the machine to meet diverse process requirements and adapt to various machining environments.
